CommScope F4DR-C - DIN MALE RIGHT ANGLE by CommScope | TrustClarity

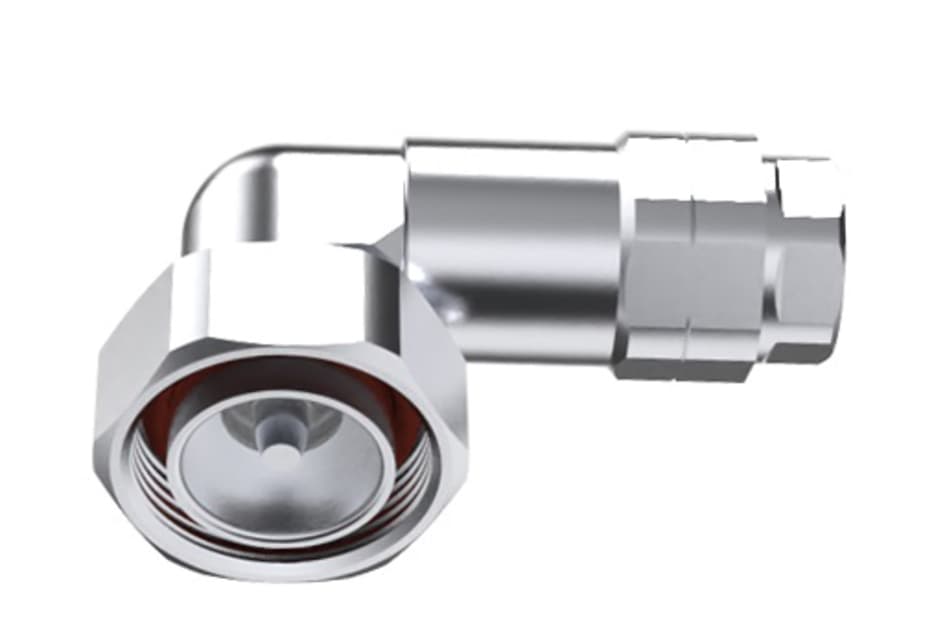

CommScope F4DR-C - DIN MALE RIGHT ANGLE About Product CommScope F4DR-C - DIN MALE RIGHT ANGLE
Please refer to the following attachments for additional details on the product.
Product Specifications
Body Style: Right angle
Cable Family: Warranty
10-Day Functional Warranty
LTL Delivery
This product weighs 1.2 LB each and will be shipped via freight carrier.
FSJ4-50B
Inner Contact Attachment Method: Captivated
Inner Contact Plating: Gold | Silver
Mounting Angle: Right angle
Outer Contact Attachment Method: Self-flare
Outer Contact Plating: Trimetal
Height: 42.42 mm | 1.670 in
Width: 34.54 mm | 1.360 in
Length: 70.87 mm | 2.790 in
Right Angle Length: 18.03 mm | 0.710 in
3rd Order IMD at Frequency: -120 dBm @ 910 MHz
3rd Order IMD Test Method: Two +43 dBm carriers
Insertion Loss Coefficient, typical: 0.05
Average Power at Frequency: 1.0 kW @ 900 MHz
Connector Impedance: 50 ohm
Inner Contact Resistance, maximum: 0.8 mOhm
Insulation Resistance, minimum: 5000 mOhm
Operating Frequency Band: 0 – 7500 MHz
Outer Contact Resistance, maximum: 1.5 mOhm
Peak Power, maximum: 15.6 kW
RF Operating Voltage, maximum (vrms): 884 V
Shielding Effectiveness: -110 dB
Connector Retention Tensile Force: 444.82 N | 100.000 lbf
Connector Retention Torque: 5.42 N-m | 47.998 in lb
Coupling Nut Proof Torque: 24.86 N-m | 220.003 in lb
Coupling Nut Retention Force: 1000.85 N | 225.000 lbf
Coupling Nut Retention Force Method: MIL-C-39012C-3.25, 4.6.22
Interface Durability: 500 cycles
Operating Temperature: -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature: -55 °C to +85 °C (-67 °F to +185 °F)
Attenuation, Ambient Temperature: 20 °C | 68 °F
Average Power, Ambient Temperature: 40 °C | 104 °F
Corrosion Test Method: MIL-STD-1344A, Method 1001.1, Test Condition A
Immersion Test Mating: Unmated
Weight, net: 197.2 g | 0.435 lb FAQs 2. Can you share more information about this item? 3. Why are your prices so low and competitive? 4. Can I sell my products on TrustClarity?
