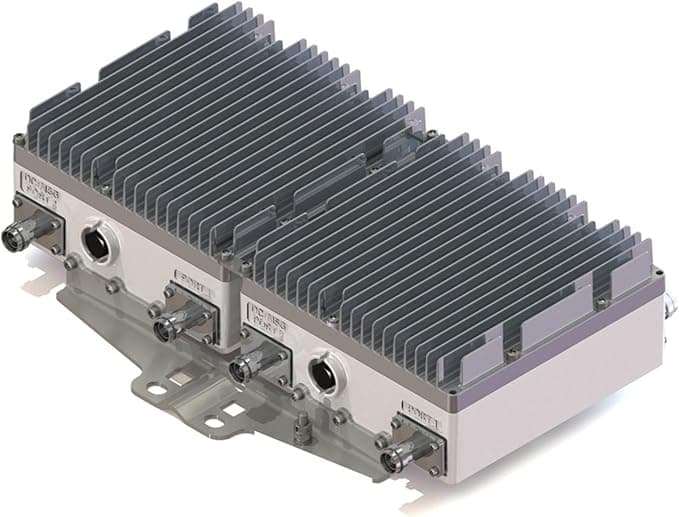

CommScope CHB626-43-2X - *Twin Hybrid Combiner, 617-2700 MHz
Slide 1 of 1
Manufacturer
CommScope
MPN
CHB626-43-2X
Available
0
Condition
New
*Twin Hybrid Combiner, 617-2700 MHz
The CommScope CHB626-43-2X is a high-quality twin hybrid combiner designed for use in wireless communication systems. It operates in a wide frequency range of 617-2700 MHz, making it suitable for various applications such as cellular, Wi-Fi, and satellite communications.
The CHB626-43-2X is designed to combine two input signals into one output signal with minimal loss and interference. It is ideal for use in distributed antenna systems (DAS) and in-building wireless networks, where multiple signals need to be combined and distributed to different areas.
Features:
- Hybrid combiner providing the flexibility of combining any twocarriers within 617-2700 MHz
- Ideal for combining carriers of any technology combination (LTE,UMTS, CDMA, GSM, etc.) independent of guard band restrictions
- Integrated low PIM load allows for simplified installation
- Self-contained housing ensures highest reliability in severeenvironments
- DC-AISG passing capability from Port 2 to Common Port
- New 4.3-10 connectors for improved PIM performance and sizereduction
Specifications | |
| AISG Carrier | 2176 KHz ± 100 ppm |
| Connector Interface | 4.3-10 Female |
| Modularity | Two-pack twin |
| Mounting | Pole | Wall |
Dimensions | |
| Height | 181 mm | 7.126 in |
| Width | 371 mm | 14.606 in |
| Depth | 86.5 mm | 3.406 in |
| Ground Screw Diameter | 6 mm | 0.236 in |
Electrical Specifications | |
| 3rd Order IMD Test Method | Two +43 d. Bm carriers |
| 3rd Order IMD typical | -161 d. Bc |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical Specifications, AISG | |
| dc Current, maximum | 2.5 A |
Electrical Specifications, Branch 1 | |
| Coupling | 3.1 dB |
| Coupling Tolerance | ±0.8 dB |
| Input Power, PEP | 3000 W |
| Input Power, RMS | 150 W |
| Isolation, typical | 30 dB |
| Operating Frequency Band | 617 / 2700 MHz |
| Port Designation | Port 1 |
| Return Loss, typical | 22 dB |
Specifications Electrical, Branch 2 | |
| Coupling | 3.1 dB |
| Coupling Tolerance | ±0.8 dB |
| Input Power, PEP | 3000 W |
| Input Power, RMS | 150 W |
| Isolation, typical | 30 dB |
| Operating Frequency Band | 617 / 2700 MHz |
| Port Designation | Port 2 |
| Return Loss, typical | 22 dB |
Environmental Specifications | |
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
