Manufacturer
CommScope
MPN
CBC426T-DS-43
Available
0
Condition
New

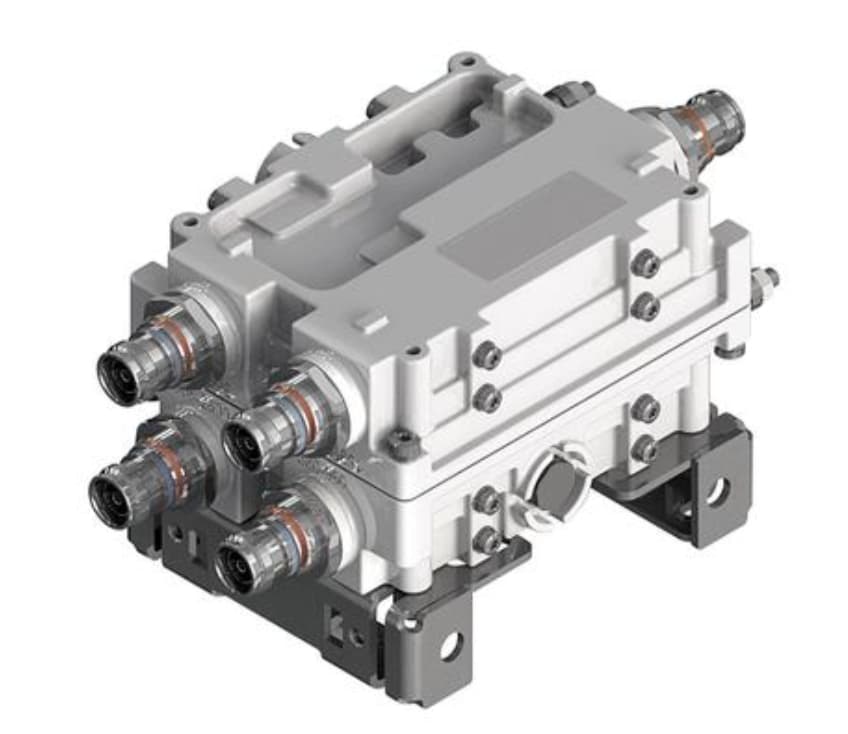

CommScope CBC426T-DS-43 - Twn Dplxr 380-960 & 1695-2690 W/dc Sense
The CommScope CBC426T-DS-43 is a high-performance twin diplexer designed for use in wireless communication systems. It operates in a frequency range of 380-960 MHz and 1695-2690 MHz, making it suitable for a wide range of applications. This diplexer features DC sense technology, allowing for efficient power management and improved signal quality.
Specifications | |
| Frequency f1 | 380 to 960 MHz |
| Frequency f2 | 1695 to 2360 MHz |
| Power | 200 W |
| Peak Power | 2000 W |
| Insertion loss | 0.1 dB |
| Insertion loss f1 | 0.1 dB |
| Insertion loss f2 | 0.1 dB |
| Frequency | 380 |
| Isolation | 63 to 65 dB |
| Isolation f1 | 65 dB |
| Isolation f2 | 63 dB |
| PIM | -161 dBc |
| Return Loss | 22 to 24 dB |
| Return loss f1 | 24 dB |
| Return loss f2 | 22 dB |
| Voltage | 7 to 30 Vdc |
| Application Type | Cellular |
| Impedance | 50 Ohms |
| Package Type | Module with Connectors |
| Connectors | 7/16 DIN, 7/16 DIN - Female |
| Dimension | 5.984 x 4.764 x 3.425 inch. (H x W x D) |
| Weight | 2.7 Kg |
| Operating Temperature | -40 to 65 Degree C |
