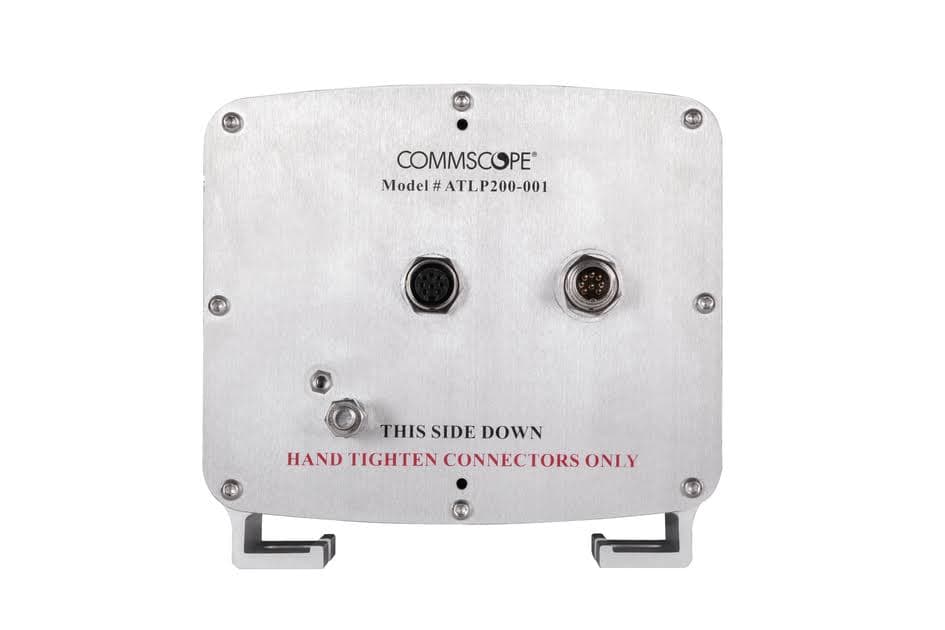

CommScope ATLP200-001 - Lightning Protection Unit
Slide 1 of 1
Manufacturer
CommScope
MPN
ATLP200-001
Available
6
Condition
New
Lightning Protection Unit
The CommScope ATLP200-001 is a high-quality Lightning Protection Unit designed to safeguard your electronic equipment from the damaging effects of lightning strikes. The ATLP200-001 is specifically designed to protect your equipment from power surges caused by lightning strikes. It features advanced surge protection technology that can handle high voltage surges and divert them away from your equipment, ensuring its safety and longevity. This Lightning Protection Unit is compact and easy to install, making it suitable for both indoor and outdoor use.
| AISG Input Connector | 8-pin DIN Male |
| AISG Input Connector Quantity | 1 |
| AISG Output Connector | 8-pin DIN Female |
| AISG Output Connector Quantity | 1 |
| Grounding Lug Thread Size | M8 |
| Height | 50.8 mm | 2 in |
| Width | 185.4 mm | 7.299 in |
| Depth | 157.5 mm | 6.201 in |
| Circuit Insertion Resistance, Power Lines, maximum | 0.5 ohm |
| Circuit Insertion Resistance, Signal Lines, maximum | 1 ohm |
| Interface Protocol Signal | Data | dc |
| Lightning Surge Capability | 10 times @ 600 A |
| Lightning Surge Capability Waveform | 10/350 waveform |
| Overcurrent Protection Type | PTC fuse |
| Protected Side Clamping, +12V Nominal Voltage | +17 V to -0.6 V |
| Protected Side Clamping, +24 V Nominal Voltage | +28 V to -0.6 V |
| Protected Side Clamping, -48 V Nominal Voltage | +0.6 V to -58 V |
| Protected Side Clamping, RS-485 Nominal Voltage | ±10 V |
Please refer to the following attachments for additional details on the product.
