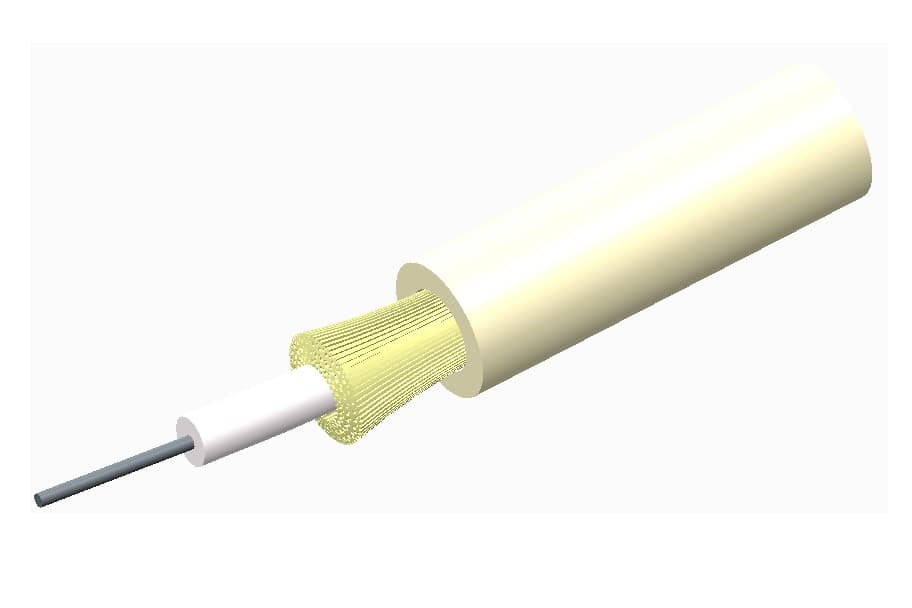

CommScope 900003177/DB - All Dielectric I O Cable 1000 Ft Box
Slide 1 of 1
Manufacturer
CommScope
MPN
900003177/DB
Available
8,000
Condition
New
CommScope 900003177/DB - All Dielectric I O Cable 1000 Ft Box
Please refer to the following attachments for additional details on the product.
- Cable Type:
- Cordage
- Construction Type:
- Non-armored
- Subunit Type:
- Gel-free
- Jacket Color:
- Ivory
- Total Fiber Count:
- 1
- Diameter Over Jacket:
- 2.9 mm | 0.114 in
- Minimum Bend Radius, loaded:
- 50 mm | 1.969 in
- Minimum Bend Radius, unloaded:
- 30 mm | 1.181 in
- Tensile Load, long term, maximum:
- 30 N | 6.744 lbf
- Tensile Load, short term, maximum:
- 100 N | 22.481 lbf
- Compression:
- 22 N/mm | 125.623 lbf/in
- Compression Test Method:
- FOTP-41 | IEC 60794-1 E3
- Flex:
- 300 cycles
- Flex Test Method:
- FOTP-104 | IEC 60794-1 E6
- Impact:
- 0.74 N-m | 6.55 in lb
- Impact Test Method:
- FOTP-25 | IEC 60794-1 E4
- Strain:
- See long and short term tensile loads
- Strain Test Method:
- FOTP-33 | IEC 60794-1 E1
- Twist:
- 10 cycles
- Twist Test Method:
- FOTP-85 | IEC 60794-1 E7
- Vertical Rise, maximum:
- 334 m | 1095.801 ft
- Fiber Type:
- G.657.A2 | G.657.A2/B2
- Installation temperature:
- -20 °C to +60 °C (-4 °F to +140 °F)
- Operating Temperature:
- -40 °C to +70 °C (-40 °F to +158 °F)
- Storage Temperature:
- -40 °C to +75 °C (-40 °F to +167 °F)
- Environmental Space:
- Riser
- Flame Test Listing:
- NEC OFNR (ETL) and c(ETL)
- Jacket UV Resistance:
- UV stabilized
- Water Penetration:
- 24 h
- Water Penetration Test Method:
- FOTP-82 | IEC 60794-1 F5
- Cable Freeze:
- -2
- Low High Bend:
- -30 °C to +60 °C (-22 °F to +140 °F)
- Low High Bend Test Method:
- FOTP-37 | IEC 60794-1 E11
- Temperature Cycle:
- -40 °C to +70 °C (-40 °F to +158 °F)
- Temperature Cycle Test Method:
- FOTP-3 | IEC 60794-1 F1
- Cable weight:
- 7.9 kg/km | 5.309 lb/kft
