Cookie PolicyCommScope 220497 - Ground Kit For 5/8, 7/8, Ew90, Ew132, Fld Attach Lug 60 Lead

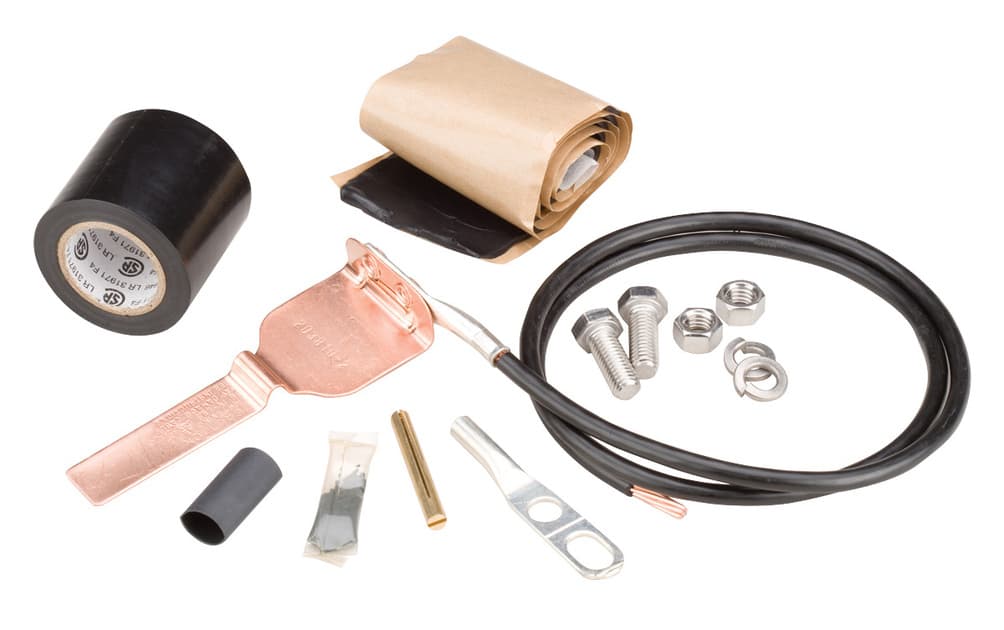

CommScope 220497 - Ground Kit For 5/8, 7/8, Ew90, Ew132, Fld Attach Lug 60 Lead
Please refer to the following attachments for additional details on the product.
- Bonding Conductor Jacketing Material:
- PVC
- Bonding Conductor Material:
- Copper
- Bonding Conductor Wire Size:
Warranty
10-Day Functional Warranty
Cable Type:Corrugated | Elliptical waveguide Grounding Kit Type:Standard Grounding Kits Grounding Strap Material:Copper Lug Attachment:Field attached Bonding Conductor Length:1524 mm | 60 in Cable Jacketing Removal Length, maximum:58.42 mm | 2.3 in Cable Jacketing Removal Length, minimum:55.88 mm | 2.2 in Compatible Diameter, maximum:28.702 mm | 1.13 in Compatible Diameter, minimum:21.336 mm | 0.84 in Nominal Size:5/8 in | 7/8 in Current Handling:Tested to withstand 100,000 amps peak current surge Operating Temperature:-40 °C to +85 °C (-40 °F to +185 °F) Storage Temperature:-40 °C to +80 °C (-40 °F to +176 °F) Weatherproofing Method:Butyl and electric tape Weight, gross:0.83 kg | 1.83 lb
