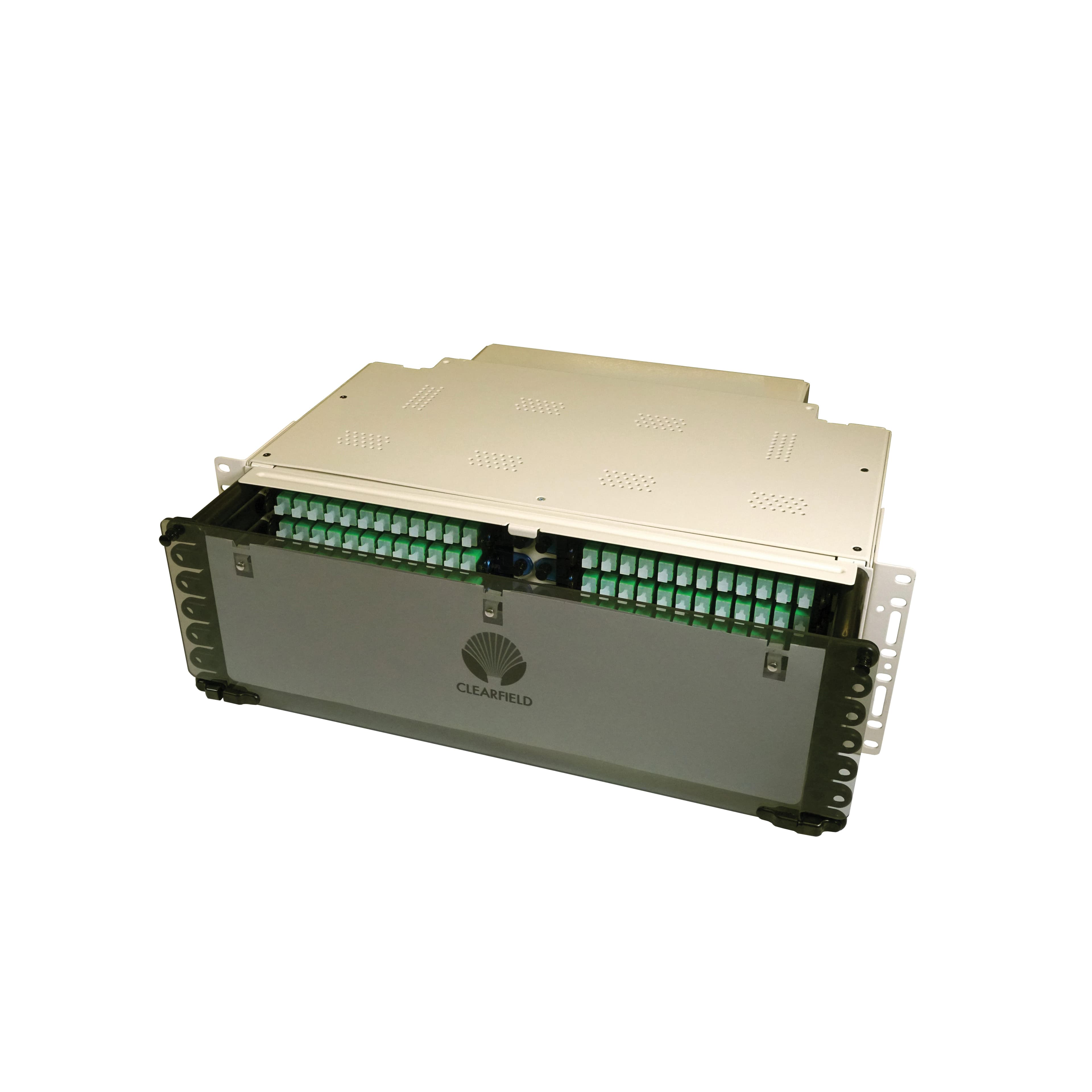

Clearfield, Inc. G-HBB-288-C1F-AZZ - Fxmp Panel, Loose Tube Patch And Splice, 11 Inch/24 Cass. Cap. Chassis , Almond, 4.77 Inch Rods, 288 Ports Loaded Into 24 Singlemode Sc/apc Clearview Blue Cassette(s). Front And Rear Protection. Slack Basket Included.

Clearfield, Inc. G-HBB-288-C1F-AZZ - Fxmp Panel, Loose Tube Patch And Splice, 11 Inch/24 Cass. Cap. Chassis , Almond, 4.77 Inch Rods, 288 Ports Loaded Into 24 Singlemode Sc/apc Clearview Blue Cassette(s). Front And Rear Protection. Slack Basket Included.

The Clearfield, Inc. G-HBB-288-C1F-AZZ is a high-density fiber optic panel designed for efficient patching and splicing of loose tube cables. It features an 11-inch chassis with a capacity of 24 cassettes, making it ideal for large-scale fiber optic networks. This panel is capable of accommodating up to 288 ports, which are loaded into 24 singlemode SC/APC Clearview Blue cassettes.

These cassettes provide front and rear protection for the fiber optic connections, ensuring maximum safety and reliability. The cassettes are also easily removable for quick and easy access to the ports. This helps to keep the panel organized and free from clutter, making maintenance and troubleshooting easier.

FEATURES

Panels are designed, tested and certified to Telcordia GR-63 and GR-1089 NEBS Level 3

Fiber cable is certified to Telcordia GR-20 and GR-409

Terminations designed, tested and certified to Telcordia GR-326

Supports all industry standard single mode and multimode connectors

Front cover is easily removable and installation of cassettes is simple with no tools needed

Individual radius fingers provide organized and intuitively managed fiber jumpers and minimize pile-up

Slide rails for cassettes provides a stable attachment utilizing the cassette T-rail and are incorporated into the rear protection of panels

Pre-terminated OSP buffer tubes are protected by bend-limited tubing and have their slack stored inside panel to protect against environmental and human damage

The top metal protective cover slides out for top protection over the fiber cables and can sit in 3 positions, closed, open 3-1/4 in (82.55 mm) and open 4.77 in (121.16 mm)

Front access to pre-terminated assemblies with removable adapter plates for testing, cleaning and maintenance

The entire 12 fiber Clearview cassette is removable for hot swap changes

Front and rear access to panel

On-frame or off-frame splicing configurations support cable constructions up to 144-fiber

New larger designation cards provide greater writing area for standard and high density panels

Reversible mounting ears provide added flexibility

Using the Clearview cassette, all fibers are deployed in increments of 12, allowing users to scale from 12 ports to full configuration without additional equipment
