Manufacturer
Cisco
MPN
ASR-920-24SZ-M
Available
473
Condition
New

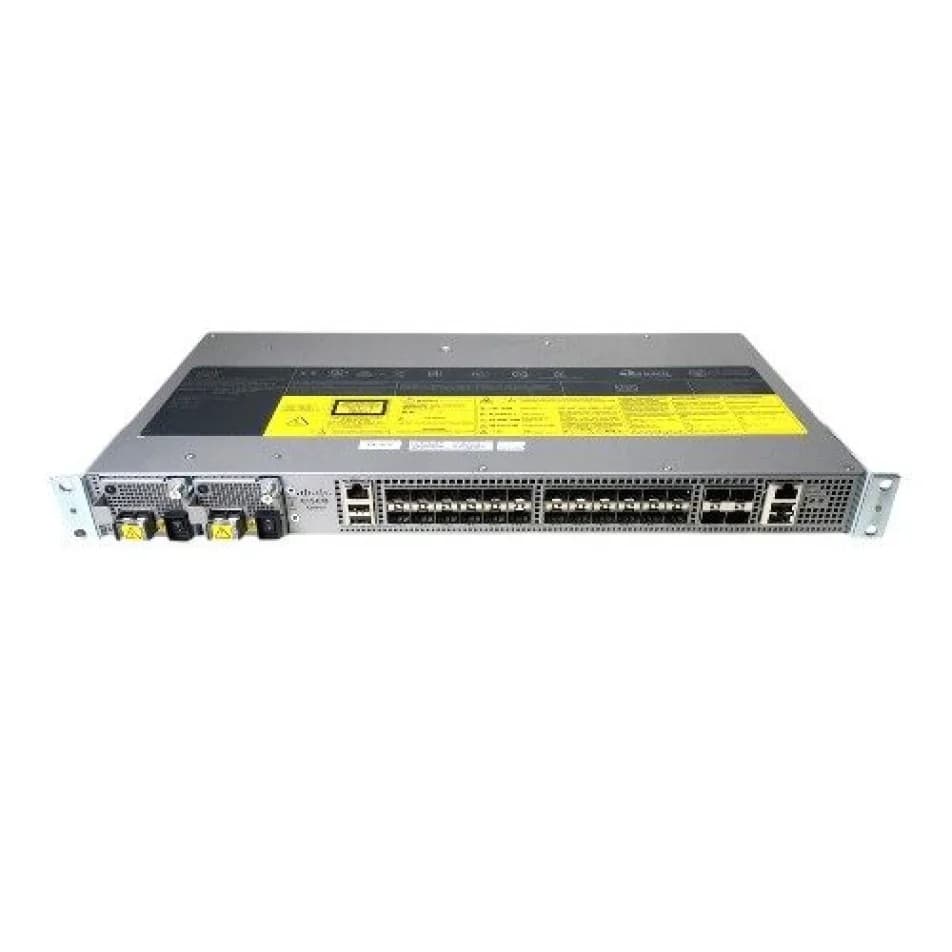

Cisco ASR-920-24SZ-M - Cell_site_acc, Router, 24ge, 4-10ge
The Cisco ASR-920-24SZ-M is a high-performance router designed for cell site access. It features 24 Gigabit Ethernet ports and 4 10 Gigabit Ethernet ports, providing fast and reliable connectivity for a variety of network devices.
This router is ideal for small to medium-sized businesses and can handle high-bandwidth applications such as video streaming and data transfer. With its compact design and advanced features, the ASR-920-24SZ-M is a versatile and powerful solution for any network infrastructure.
High-Performance Metro Routing – 64 Gbps throughput for seamless operations
Full 10G Advanced Metro IP Access License – No additional licensing needed
Redundant Power Supply for Reliability – Hot-swappable dual DC PSU
Space-Saving Rack Design – 1U form factor for efficient installation
Effortless Network Management – USB console, auxiliary & management ports
Optimized Cooling – Front-to-back airflow ensures consistent performance
Energy-Efficient – Max system power consumption of just 145W
Specifications | |
Physical specifications1 (H x W x D) | 1.72 x 17.5 x 10 in. (43.7 x 444.5 x 255 mm), 1RU |
| Weight | 8.5 lb (3.9kg) - empty chassis |
| Rack mounts | ETSI rack-mount kit 19-in. rack-mount kit 23-in. rack-mount kit |
| Air flow | Front-to-Back & Side-to-Back airflow |
| Power supplies | 546,260 |
| Mean time between failures (MTBF) (hours) | |
| Power consumption | Max 145W, Typical: 110W |
| AC input voltage and frequency | Voltage range: 85V AC to 264V AC, nominal 100V AC to 240V AC Frequency Range: 47 to 63 Hz, nominal 50 to 60 Hz |
| DC input voltage | Voltage range: -18 to -32 VDC or -36 to -72 VDC, nominal: -24 VDC/-48 VDC |
| Operating environment and altitude1 | -40 to 70ºC, up to 1,000 feet (300m) -40 to 65ºC, up to 6,000 feet (1800m) -40 to 55ºC, up to 13,000 feet (4000m) |
| Relative humidity | 5 to 95 percent, noncondensing |
| Acoustic noise2 | Acoustic noise peak operation compliant to the Network Equipment Building Standards (NEBS) GR-63-Core Issue 3 sound power level of 78 dB at 27ºC operation as measured by the ANSI S12.10/ISO 7779 NAIS noise measurement test standard. |
| Storage environment | Temperature: -40 to 70ºC altitude: 15,000 feet (4570m) |
| Seismic | Zone 4 |
| Safety | ● UL 60950-1, 2005 ● CAN/CSA C22.2 No. 60950-1: 2005 ● IEC 60950-1, 2005 ● EN 60950-1, 2005 ● AS/NZS 60950.1:2005 |
| Electromagnetic | ● FCC CFR47 Part 15 Class A |
| Emissions compliance | ● EN55022, class A ● CISPR22, class A ● ICES-003, class A ● EN 300 386, class A ● VCCI, class A ● KN22, class A ● EN61000-3-2 to EN61000-3-3 |
| Immunity compliance | ● EN 300 386 ● EN 61000-6-1 ● EN 50082-1 ● CISPR24 ● EN 55024 ● KN 24 ● EN 50121-4 ● EN/KN 61000-4-2 to EN/KN 61000-4-6 ● EN/KN 61000-4-8 ● EN/KN 61000-4-11 |
| Power substation system compliance | ● IEC-61850-3 (2002) (ASR-920-12SZ-IM) ● IEEE1613 (2009) (ASR-920-12SZ-IM) |
| NEBS1 | ● GR-63-CORE ● GR-1089-CORE ● SR-3580 NEBS Level 4 |
| ETSI | ● ETS/EN 300 119 Part 4 ● ETS/EN 300 019 - Storage: Class 1.2, Transportation: Class 2.3, In-Use/Operational: Class 3.2 ● ETS/EN 300 753 |
| Network synchronization | ● ANSI T1.101 ● GR-1244-CORE ● GR-253-CORE ● ITU-T G.703 clause 5 ● ITU-T G.703 clause 9 ● ITU-T G.781 ● ITU-T G.813 ● ITU-T G.823 ● ITU-T G.824 ● ITU-T G.8261/Y.1361 ● ITU-T G.8262 ● ITU-T G.8264 ● IEEE1588-2008 |
