Cisco A9K-RSP440-SE - Asr9k Rsp 440g Slot Fabric And 12gb
Slide 1 of 1
Manufacturer
Cisco
MPN
A9K-RSP440-SE
Available
298
Condition
New

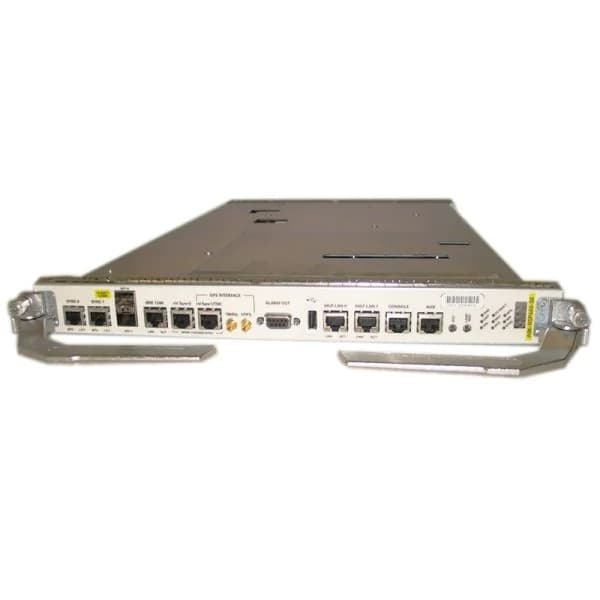

Cisco A9K-RSP440-SE - Asr9k Rsp 440g Slot Fabric And 12gb
The Cisco A9K-RSP440-SE is a high-performance router service processor designed for use with the Cisco ASR 9000 Series routers. This RSP (Router Service Processor) is specifically designed for the ASR 9000 Series and provides advanced routing and forwarding capabilities. It is equipped with a 440G slot fabric and 12GB of memory, making it capable of handling large amounts of data and traffic.
The A9K-RSP440-SE is a reliable and powerful solution for network operators and service providers who require high-performance routing and forwarding capabilities. It is designed to handle the demands of modern networks, including high-speed data transfer, advanced services, and virtualization. It also supports a wide range of protocols, including IPv4, IPv6, MPLS, and Ethernet, making it suitable for a variety of network environments.
Specifications | |
| Switch fabric | ◦ High-capacity full-duplex integrated dual-switch fabric ◦ 220 Gbps/slot with single RSP ◦ 440 Gbps/slot with dual RSP |
| Memory internal | ◦ 12-GB ECC-protected DRAM for A9K-RSP440-SE ◦ Solid state disk: two 16-GB SSDs ◦ 8-GB embedded USB |
| Memory external | ◦ USB 2.0 Type A receptacle |
| Timing system | ◦ Timing: Two independent clock source connections ◦ IEEE 1588 support: Copper 10/100-Mbps RJ-45 Ethernet port ◦ GPS ◦ ToD (RS422 and RS232) ◦ 1-pps RS422 or 1.0/2.3 50-ohm RF connector ◦ 10MHz in/out 1.0/2.3 50-ohm RF connector |
| Management | ◦ Two 100/1000 BASE-T (RJ-45) LAN management ports ◦ One console port ◦ One auxiliary port ◦ Two 10-GE Small Form-Factor Pluggable Plus (SFP+) virtualization cluster ports |
| Alarms | ◦ Alarm outputs: Critical alarm (CR), major alarm (MJ), and minor alarm (MN) |
| LEDs | ◦ Amber alarm cut-off (ACO) and lamp test ◦ System synchronization alarm (SYNC) ◦ Compact Flash activity (CF) ◦ Solid State Drive (SSD) ◦ Fan tray visual indicator (UFAN/LFAN) |
Please refer to the following attachments for additional details on the product.
