Manufacturer
Burndy
MPN
YA3C2TC38
Available
234
Condition
New

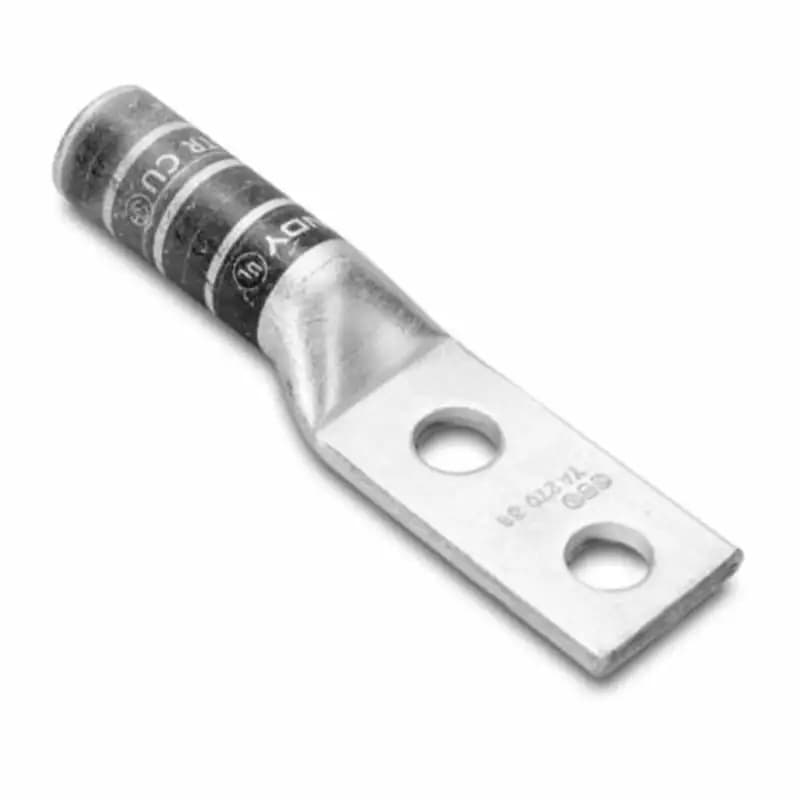

Burndy YA3C2TC38 - Lug 2ga 2h Sol 3/8 1 Ctr
Features |
| Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands |
| Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection |
| Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements |
| Connectors are clearly marked with stamping and barrel color coding |
| 2-Hole design prevents rotation |
Specifications | |
| Color | White |
| Wire Conductor Type | Solid |
| Wire Size | #3 |
| Barrel Length | 1.25 in |
| Inspection Hole | Yes |
| Bolt Hole Spacing | 1 in |
| Insulated | No |
| Stud Size | 3/8 in |
| Number of Studs | 2 |
| Barrel Size | 1-1/4 in L |
| Barrel Type | Chamfered/Long |
| Conductor Size | 3 AWG |
| Conductor Type | Stranded Copper |
| Material | Tin Plated Copper |
| Overall Length | 3.43 in |
| Stud Size | 3/8 in |
| Temperature Rating | 90 deg C |
| Tongue Size | 0.58 in W x 0.08 in THK |
| Tongue Type | Standard/Straight |
| Voltage Rating | 600 V AC to 35 kV, 600 VAC to 35 kV |
Warranty
N/A
Please refer to the following attachments for additional details on the product.
No specifications available.
