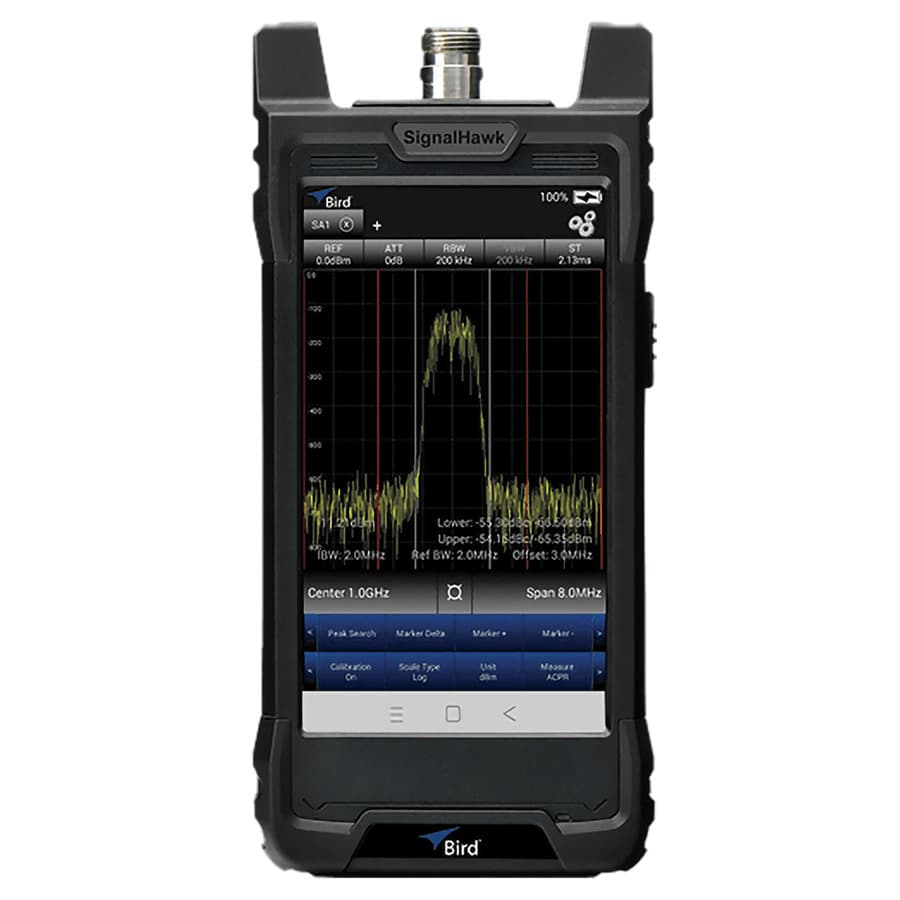

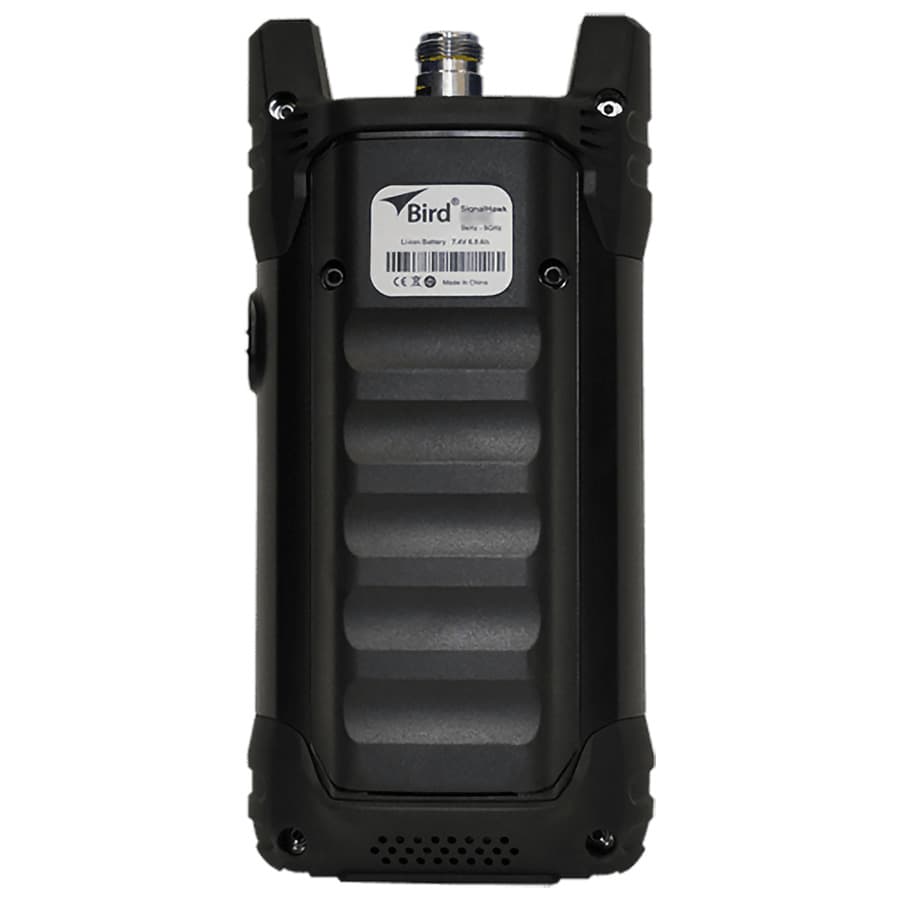

Bird SH-75S-TC - Spectrum Analyzer, 9 kHz-7.5 GHz
The Bird SH-75S-TC is a high-performance spectrum analyzer designed for professional use in a wide range of applications. With a frequency range of 9 kHz to 7.5 GHz, this analyzer is capable of accurately measuring and analyzing signals from various sources such as wireless communication devices, broadcast equipment, and radar systems.
The large 10.4-inch color display provides a clear and detailed view of the measured signals, making it easy to analyze and interpret data. The user-friendly interface and intuitive controls make it simple to operate, even for those with limited experience in spectrum analysis. It also comes with a variety of connectivity options, including USB, LAN, and GPIB, allowing for easy integration into existing systems.
Spectrogram/Waterfall display shows intermittent power levels at a glance.
FM demodulation allows for rapid verification of communications at the specified frequency.
Predefined measurements scan and discover spectrum events other analyzers miss.
View the spectrum with trace display, spectrogram display, or both.
High-resolution, full-color display for indoor and outdoor viewing.
Rugged and weather resistant.
Includes the Bird RF Meter App for interoperability with a wide range of Bird Field sensors.
Specifications | |
| Frequency Range: | 9 kHz to 7.5 GHz |
| Aging: | ±1 ppm |
| Sweep Time: | 1.2 ms to 1600 s full span 3.99 ms to 1600 s settable zero span |
| Resolution Bandwidth: | 10 Hz to 5 MHz in 1, 2, 3, 5, 10 steps |
| Second Harmonic Distortion: | 1.6 GHz to -70 dBc |
| Third Order Intercept (TOI): | +15 dBm (–10 dBm tones, 1 MHz apart, preamp off, reference level –10 dBm) |
| P1dB: | 0 dBm nominal |
| Phase Noise (1 GHz): | -88 dBc/Hz, @ 10 kHz (typical -90 dBc/Hz) -115 dBc/Hz, @ 1 MHz (typical -116 dBc/Hz) |
| Measurement Range: | DANL to +20 dBm |
| Input Attenuator Range: | 0 to 30 dB, 1 dB step |
| Max Safe Input Level vs. Pre-amp: | All Amps Off: +20 dBm 1 Amp On: 20 dBm All Amps On: -40 dBm |
| Reference Level Range: | -140 dBm to +20 dBm, (Ref level offset: OFF) -190 dBm to +70 dBm, (Ref level offset: ON) |
| RBW Switching Uncertainty: | ±0.3 dB |
| Input Attenuator Uncertainty: | ±0.6 dB |
| Display Average Noise Level (DANL): | Preamp Off: 1 GHz, -129 dBm/Hz (typical -132 dBm/Hz) Preamp +20 dB: 1 GHz, -149 dBm/Hz (typical -152 dBm/Hz) Preamp +40 dB: 1 GHz, -168 dBm/Hz (typical -169 dBm/Hz) (Input terminated, detector set to positive, trace average set to 1000, span set to 50 kHz, reference level of -100 dBm, all other settings auto-coupled, 23±5 °C normalized to 1 Hz RBW) |
| Residual Responses: | -60 dBm |
ACCURACY | |
| Frequency Span Accuracy: | ±1 % |
| RBW Accuracy: | ≥1 MHz, ±10%, <1 MHz, ±2% |
| Amplitude Accuracy: | ±1.5 dB (ATT set to 0 dB, input signal -5 to -30 dBm, detector set to positive, sensitivity set to low, RBW auto-coupled, all other settings auto-coupled, 23 ±5 °C. Half hour warm-up required) |
| Reference Level Accuracy: | ≥ -60 dBm, ±0.8 dB |
CONNECTORS | |
| RF In: | Type-N (Female) |
| USB: | Type C |
| Power Interface: | Slim tip, DC 20V, 4.5A |
SYSTEM | |
| Display: | 5.5 in, 1280 *720p |
| OS: | Android |
| Languages: | English, Chinese |
| Battery: | Type: Li-ion Operating Time: 5 hours (typ) Charge Time: 6 hours (typ) |
ENVIRONMENTAL | |
| Temperature: | Operating: 0 to 50 °C Storage: -20 to 70 °C |
PHYSICAL | |
| Size: | 7.8" x 3.7" x 2.4" (197 x 93 x 61 mm) |
| Weight: | 1.98 lb (0.9 kg) |
