Manufacturer
Baicells
MPN
PBS41010
Available
0
Condition
New

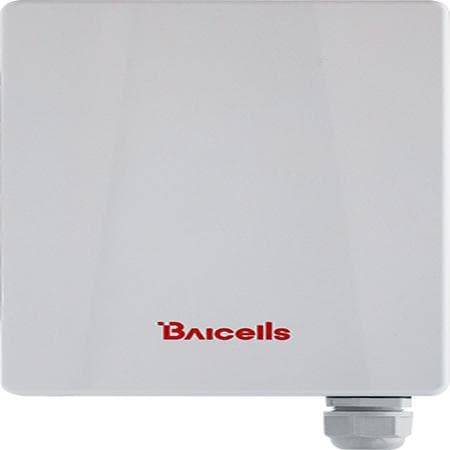

Baicells PBS41010 - TDD Outdoor Micro Cell3550-3700MHz
The Baicells PBS41010 is a TDD outdoor micro cell designed for use in the 3550-3700MHz frequency band. It is designed to be mounted on a pole or wall, making it ideal for use in urban and suburban environments. With a compact size and lightweight design, it can be easily installed in various locations without taking up too much space.
This micro cell supports TDD (Time Division Duplex) technology, which allows for efficient use of the available spectrum. The PBS41010 has a frequency range of 3550-3700MHz, which is ideal for use in the 3.5GHz band. This frequency band is known for its high capacity and low interference, making it perfect for providing reliable and high-quality wireless services.
Standard LTE TDD Band 48
GUI-based local and remote Web management
Excellent Non-Line-of-Sight (NLOS) coverage
Peak rate: Up to DL 110 Mbps and UL 35 Mbps with 20 MHz bandwidth
32 RRC connected users
PoE++ power supply; only one Ethernet cable required for data transmission and power supply
Cloud/Local/Embedded EPC (HaloB) is supported for convenient and economical deployment
Specifications | |
| Power Interface Lightning | Differential mode: ±3 KA |
| Protection | Common mode: ±5 KA |
| MTBF | ≥ 150000 hours |
| MTTR | ≤ 1 hour |
| Ingress Protection Rating | IP65 |
| Operating Temperature | -40°F to 131°F / -40°C to 55°C |
| Storage Temperature | -49°F to 158°F / -45°C to 70°C |
| Humidity | 5% to 95% RH |
| Atmospheric Pressure | 70 kPa to 106 kPa |
| Power Consumption | Typical 22.5 W, maximum 25 W |
| Weight | 3.11 lb/1.41 kg |
| Dimensions (HxWxD) | 8.7 x 5.9 x 2.05 inches 221 x 150 x 52 millimeters |
| Installation | Pole or wall mount |
| IC Certification | TBD |
| RF Antenna Gain | 13.5 dBi |
| Maximum EIRP | 43.5 dBm |
| Power Control | UL Open-loop Power Control, DL Power Allocation (3GPP TS 36.213 compliant) |
| Voice | VoLTE, Circuit Switched Fallback (CSFB) to GSM |
| NSA | Supported |
| SON | Self-Organizing Network • Automatic setup • Automatic Neighbor Relation (ANR) • PCI confliction detection |
| EPC | HaloB (Embedded EPC) |
| RET support | Yes |
| Traffic Offload | Local breakout |
| Layer 2 Support | Transparent Bridge Mode |
TECHNOLOGY | |
| Standard | LTE TDD RAN (3GPP Release 15 compliant) |
| TDD UL/DL Configuration | 1, 2, 6 (with Special Subframe Configuration 7) |
| Frequency Band | B48 (3550 MHz–3700 MHz) |
| Channel Bandwidth | 5/10/15/20 MHz |
| Multiplexing Security | MIMO: 2x2 (DL) Radio: SNOW 3G/AES-128/ZUC Backhaul: IPsec (X.509 AES-128, AES-256, SHA-128) |
INTERFACE | |
| Ethernet Interface | 1 RJ-45 Ethernet interface (1 GE) |
| Power Supply | PoE++, complies with IEEE 802.3bt standard |
| Protocols Used | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, NTP, SSH, IPsec, TR-069, HTTP/HTTPs, 1588v2, DHCP |
| Network Management | IPv4/IPv6, HTTP/HTTPs, TR-069, SSH, Embedded EPC |
| VLAN/VxLAN | 802.IQ/VxLAN |
| LED Indicators | 4 x status LED PWR/ACT/RUN/ALM |
PERFORMANCE | |
| User Capacity | Up to 32 RRC connected users per cell (4 users per TTI) |
| Maximum Deployment Range | 7 kilometers |
| Latency | 30 milliseconds |
| Receive Sensitivity | -99.5 dBm (per channel) |
| Modulation | MCS0 (QPSK) to MCS28 (64 QAM) DL: QPSK, 16 QAM, 64 QAM UL: QPSK, 16 QAM, 64 QAM |
| Transmit Power Range | 0 to 27 dBm (combined, with 1 dB interval) |
| Quality of Service | Nine-level priority indicated by QoS Class Identifiers (QCI) |
| ARQ/HARQ | Supported |
| Synchronization | GPS (built-in), 1588v2 |
