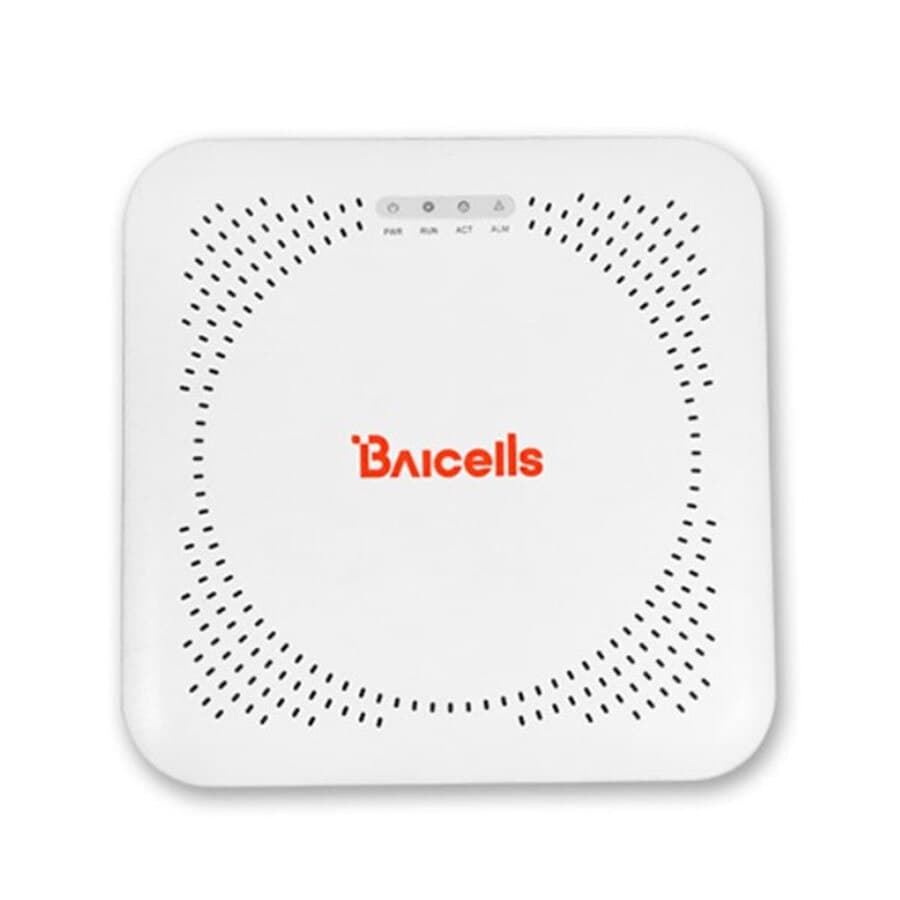

Baicells PBS31010 - Neutrino-430
Slide 1 of 1
Manufacturer
Baicells
MPN
PBS31010
Available
0
Condition
New
Neutrino-430
The Baicells PBS31010 - Neutrino-430 is a high-performance base station designed for use with Baicells LTE networks. It supports multiple frequency bands, including 2.3GHz, 2.5GHz, and 3.5GHz, ensuring compatibility with various network configurations.
It also comes with advanced features such as MIMO technology, carrier aggregation, and beamforming, which enhance network performance and increase capacity.
Features:
- GUI-based local and remote Web management
- Compact, all-in-one design of internal antenna
- Excellent Non-Line-of-Sight (NLOS) coverage
- 2CC DL/UL CA improves the spectrum efficiency of fragmented spectrum resources
- Suitable for private and public deployments; any IP-based backhaul can be used, including public transmission protected by Internet Protocol Security (IPsec)
- 96 RRC connected users per carrier, 96+96 in DC mode, upgradeable to higher capacity in future releases
- Integrated small cell form factor for quick and easy installation
- Configured out-of-the-box to work with Baicells CloudCore
- HaloB as embedded EPC solution
- Supports Citizens Broadband Radio Service (CBRS)
- Plug-and-play with Self-Organizing Network (SON) capabilities
- Interoperable with standard LTE Evolved Packet Core (EPC)
- Supports TR-069 network management interface
Specifications | |
HARDWARE | |
| LTE Mode | TDD |
| Frequency | Bands Band 48 and partial bands 42, 43 |
| Channel Bandwidth | 5/10/15/20 MHz per carrier |
| Max Output Power | 24 dBm/port |
| Power Supply | 12 VDC, POE ±48 V |
| Power Consumption | ~20 W (peak) |
| Receive Sensitivity | -100 dBm |
| Synchronization | GPS, Network Listening (NL), 1588v2 |
| Interfaces | 1 optical (SFP) and 1 RJ-45 Ethernet interface (1 GE) |
| MIMO | DL: 2x2 on each carrier |
| Installation | Ceiling or wall mount |
| Antenna | 4 dBi, built-in 4-port omni antenna |
| Antenna Gain | 4 ± 1 dBi |
| Dimensions (HxWxD) | 8.7 x 8.7 x 1.8 inches 220 x 220 x 45 millimeters |
| Weight | 3.52 lbs/1.6 kgs |
| MTBF | ≥ 150000 hours |
| MTTR | ≤ 1 hour |
SOFTWARE | |
| LTE Standard | 3GPP Release 15 |
| User Capacity | 96 concurrent users in single carrier mode 96+96 concurrent users in DC mode 96 concurrent users in CA mode |
| QoS Control | 3GPP standard Quality of Service Class Identifier (QCI) |
| Modulation | Self-organizing network: Automatic setup Automatic Neighbor Relation (ANR) PCI confliction detection |
| Traffic Offload | Local breakout |
| Voice | VoLTE (future software release) |
| SON | |
| RAN Sharing | Multi-Operator Core Network (MOCN) |
| Network Mgmt | TR-069 |
| Maintenance | Local/Remote Web maintenance Online status management Performance statistics Fault management Local/Remote software upgrade Logging Connectivity diagnosis Automatic start and configuration Alarm reporting KPI reporting User information tracing Signaling Trace |
ENVIRONMENTAL | |
| Operating Temperature | 23°F to 113°F / -5°C to 45°C |
| Storage Temperature | 14°F to 122°F / -10°C to 50°C |
| Humidity | 5% to 95% RH |
| Atmospheric Pressure | 70 kPa to 106 kPa |
Please refer to the following attachments for additional details on the product.
