Manufacturer
APC by Schneider Electric
MPN
ACF503
Available
0
Condition
New

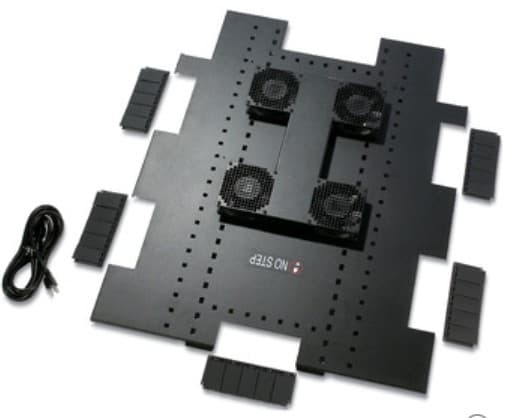

P/n: Acf503, Roof Fan Tray 120vac 50/60hz For Netshelter Sx 750mm Wide X 1070mm Deep Enclosures
The APC by Schneider Electric ACF503 is a high-quality roof fan tray designed for use with Netshelter SX 750mm wide x 1070mm deep enclosures. This fan tray operates on 120VAC and 50/60Hz, making it compatible with most power systems.
It is equipped with a powerful fan that effectively circulates air within the enclosure, removing excess heat and maintaining a stable temperature for your equipment. This helps to prevent overheating and potential damage to your valuable devices.
Specifications | |
| Main Input Voltage | 120 V |
| Input Connection Type | NEMA 5-15P |
| Number of cables | 1 |
| Color | Black |
| Height | 2.4 in (6 cm) |
| Width | 28.5 in (72.4 cm) |
| Depth | 35.2 in (89.3 cm) |
| Net Weight | 22.58 lb(US) (10.24 kg) |
| Mounting preference | No preference |
| Mounting Mode | Not rack-mountable |
| Input Frequency | 50/60 Hz |
| Air flow | 440 ft³/min (207.7 l/s) |
| Audible noise at 1 meter from surface of unit | 51 dBA |
Please refer to the following attachments for additional details on the product.
No specifications available.
