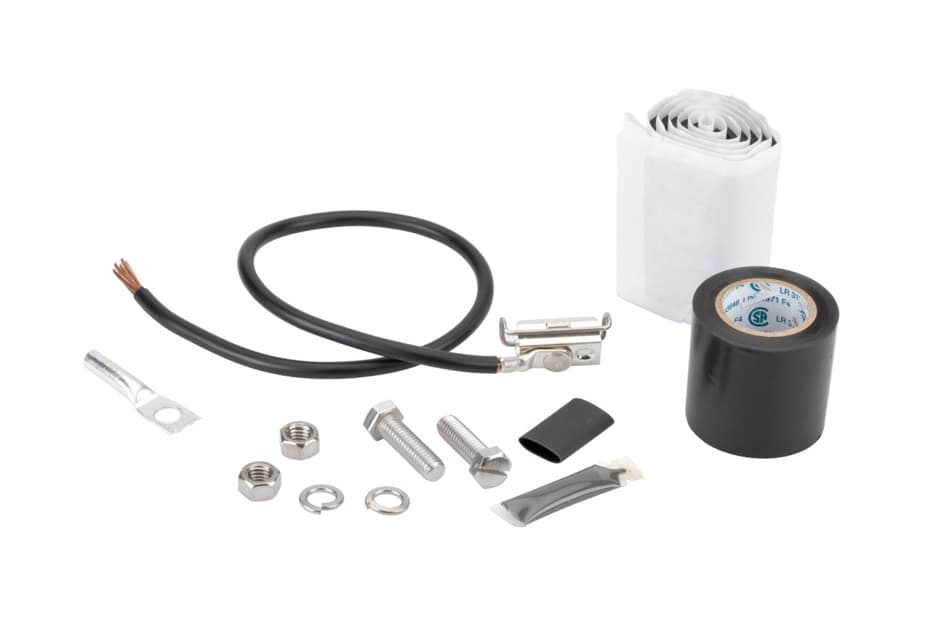

Andrew SG12-12B2U - Sureground Kit For 1/2 Inch Cable
Please refer to the following attachments for additional details on the product.
- Bonding Conductor Jacketing Material:
- PVC
- Bonding Conductor Material:
- Copper
- Bonding Conductor Wire Size:
Warranty
10-Day Functional Warranty
Cable Type:Corrugated | Smoothwall Grounding Kit Type:SureGround Grounding Kits Grounding Strap Material:Tinned copper Lug Attachment:Field attached Bonding Conductor Length:1219.2 mm | 48 in Cable Jacketing Removal Length, maximum:38.1 mm | 1.5 in Cable Jacketing Removal Length, minimum:38.1 mm | 1.5 in Compatible Diameter, maximum:16.51 mm | 0.65 in Compatible Diameter, minimum:15.494 mm | 0.61 in Current Handling:Tested to withstand 100,000 amps peak current surge Locking Bail Material:Stainless steel Rivet Material:Tinned copper Operating Temperature:-40 °C to +85 °C (-40 °F to +185 °F) Storage Temperature:-40 °C to +80 °C (-40 °F to +176 °F) Weatherproofing Method:Butyl and electric tape Weight, gross:0.59 kg | 1.301 lb
