Manufacturer
ANDREW an Amphenol company
MPN
TMAT1923B68-31-43
Available
0
Condition
New

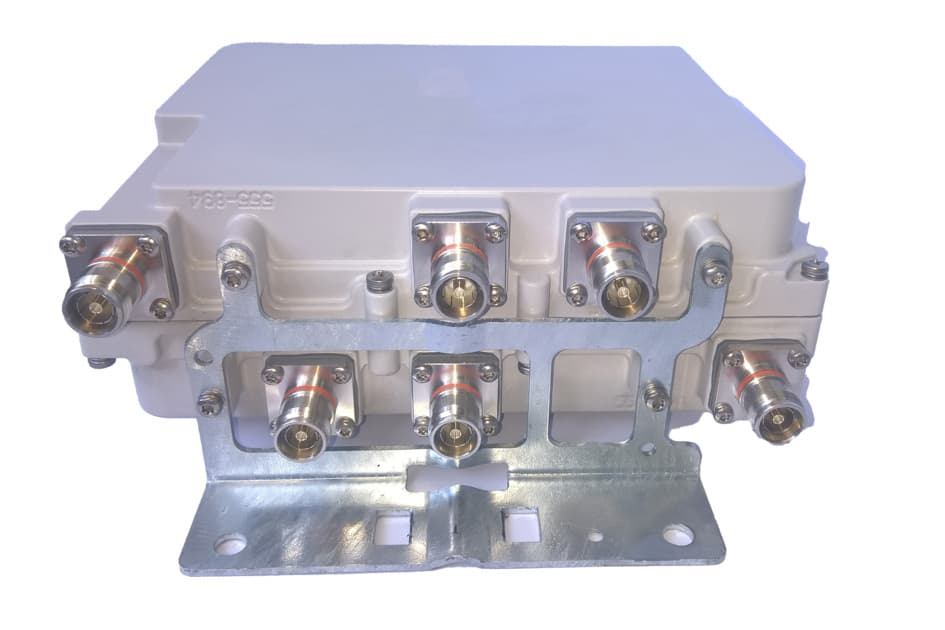

*TwinTMA PCS/WCS w 555-894 Byp, 43
The TMAT1923B68-31-43 is a high-quality product that combines the latest technology with superior design. It is specifically designed to support the PCS and WCS frequency bands. It is also equipped with ports, providing ample connectivity options for your communication needs.
Specifications | |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
| Height | 247 mm | 9.724 in |
| Width | 280 mm | 11.024 in |
| Depth | 99 mm | 3.898 in |
| Ground Screw Diameter | 5 mm | 0.197 in |
| dc Switching/Redundancy | Yes |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Operating Current at Voltage | 210 mA @ 12 Vdc |
| Alarm Current, CWA Mode | 150 mA +/- 10 mA (10-18 VDC) |
| AISG Carrier | 2.176 MHz ± 100 ppm |
| AISG Connector | 8-pin DIN Female |
| AISG Connector Standard | IEC 60130-9 |
| Protocol | AISG 2.0 |
| Voltage, AISG Mode | 10–30 Vdc |
| Frequency Range, MHz | 555–894 |
| Insertion Loss, maximum, dB | 0.20 |
| Return Loss, minimum, dB | 20 |
| Isolation, minimum, dB | 60 |
| Input Power, RMS, maximum, W | 200 |
| Input Power, PEP, maximum, W | 2,000 |
| 3rd Order PIM, maximum, dBc | -153 |
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
