Manufacturer
Ameresco Solar
MPN
MNKID-B
Available
0
Condition
New

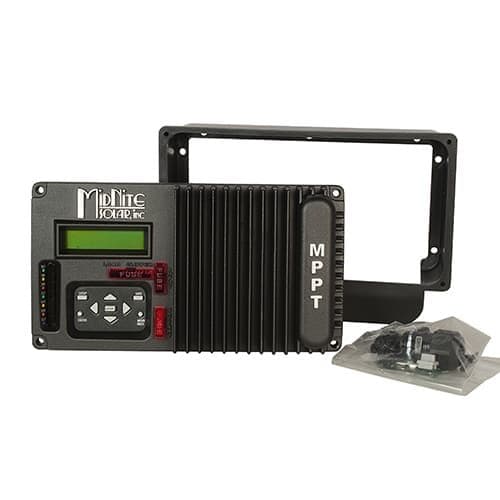

30Amp MPPT Controller
Ameresco Solar is the most versatile medium sized charge controller on the market. Ideal for small renewable energy systems. The KID allows for true input paralleling. As your power needs grow, add more modules to the array and a second KID. This will give twice the power from a single array.
Now includes AGS (Auto Generator Start)
MPPT Tracking
True paralleling - Inputs and Outputs for two KIDs
Up to 150V input
MidNite's exclusive HyperVOC extends the input voltage beyond 150 VOC for cold climates
12V, 24V, 36V, 48V battery output
Lighting Controller: dusk-dawn, hourly, day, night settings
Up to 30 amps battery output with low input voltage based off of PV configuration
No fan
Reverse polarity protected
Battery Temp Sensor (MNBTS) standard with marine version only.
Front panel exchangeable fuses for battery, input and load/clipper.
3 LED bar graph for battery status at a glance
Mechanical Data | |
| Technology: | Maximum Power Point Tracking (MPPT) |
| Dimensions: | 9.25 x 5.00 x 5.31 inches |
| Weight: | 6.00 lbs |
| Casing: | (Black) |
| Display: | LCD (Plus Status LED's) |
| Programmable Auxiliary Control Output: | Auxiliary Control Output (1 I/O Communication Port) |
| Communications: | RS232 Openly Published Protocols & USB |
| Network Cables: | Standard 4 Conductor Phone Cable |
| Environmental Rating: | Indoor IP52 Type 1 (IP53 with Drip Shield) |
| Battery Types: | Flooded, AGM, Gel, Calcium SMF, Lithium BMS, & Custom |
| Lighting Controller: | Customizable Via Keypad (Dawn, Daylight, Dusk & Night) |
Electrical Data | |
| Nominal Battery Voltage: | 12V - 48 Volts |
| Maximum Output Current: | 30 Amps |
| PV Open Circuit Voltage (Voc): | 150V + HyperVOC |
| Maximum Voc: | 162 Volts |
| Operating Input Voltage: | 150 VDC |
| Battery Voltage Range: | 9V - 64 Volts |
| Charging Regulation: | Bulk, Absorb, Float & Equalization |
| Equalization Charging: | Adjustable Voltage & Duration |
| Battery Temperature Compensation: | Automatic with BTS Installed, Adjustable mV per °C per 2V Cell |
| Operating Temperature: | -40°C + 50°C (Controller Auto Derate above + 25°C) |
| Load Terminal: | 30A Configurable |
| True Paralleling: | Inputs & Outputs Between 2 Units with Smart Active Current Sharing |
| Conduit Knock Outs: | 2 |
| Auto Gen-Start: | Yes |
Please refer to the following attachments for additional details on the product.
No specifications available.
