Manufacturer
Ameresco Solar
MPN
90J-V
Available
0
Condition
New

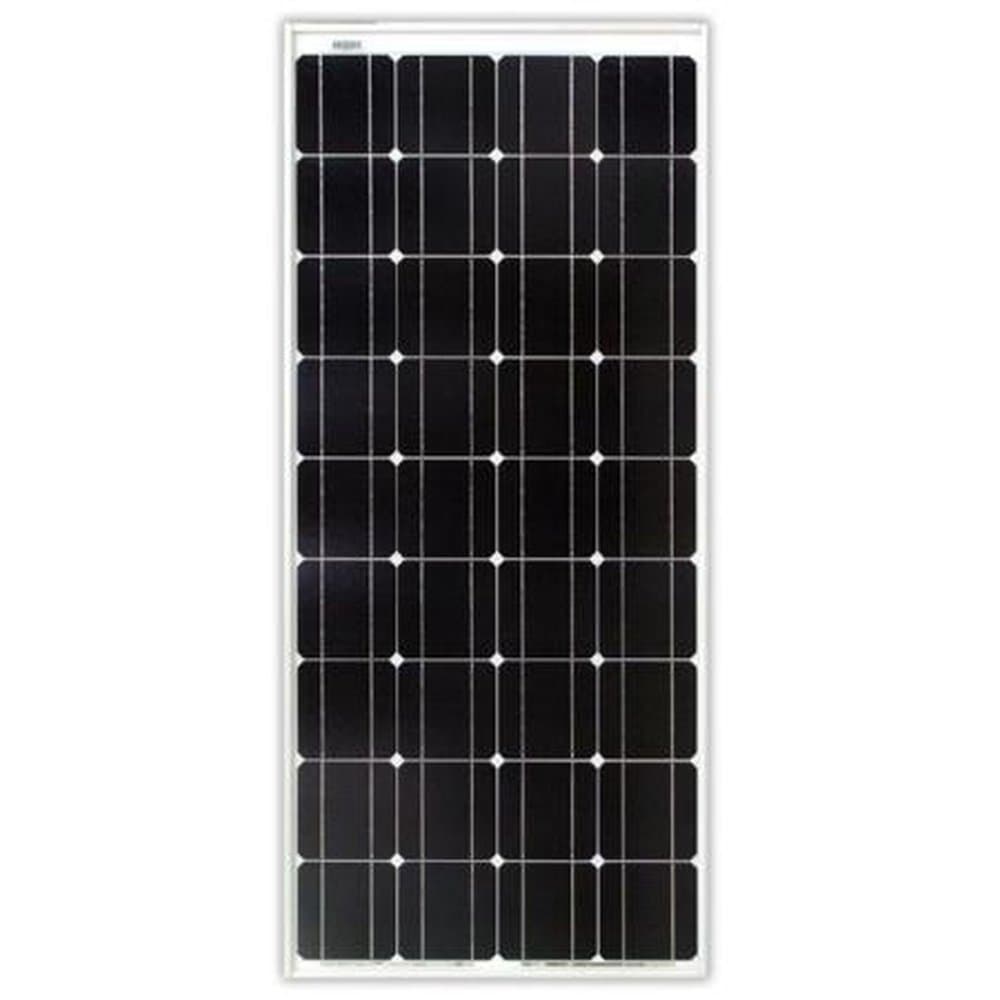

90-Watt Solar Module 5.03 Amps @ 17.9VPart Number: 90JVoltage: 12Length: 47.60 INWidth: 21.10 INThickness: 2.00 IN
The Ameresco Solar 90J-V is a high-quality solar module that is designed to provide reliable and efficient power for a variety of applications. With a power output of 90 watts, this solar panel is capable of producing 5.03 amps at 17.9 volts, making it a powerful and versatile option for both residential and commercial use.
It is built with durable materials and advanced technology to ensure long-lasting performance and maximum energy production. The 90J-V features a sleek and compact design, making it easy to install on rooftops, ground mounts, or other structures. It is also equipped with high-efficiency solar cells that can convert sunlight into electricity with minimal loss, ensuring optimal energy output.
Mechanical | |
| Type | Monocrystalline - 36 crystalline silicon cells in series |
| Dimensions | 47.4" x 21.1" x 2.0" |
| Weight | 17.0 lbs |
| Frame | Silver |
| Connector | Junction Box IP65 with 4 terminal screw connection block; accepts PG 13.5, M20 13mm (½”) conduit, or cable fittings accepting 6-12mm diameter cable. Terminals accept 2.5-10mm2 (8-14 AWG) wire |
Electrical | |
| Watts (STC) | 90 W |
| Max Power Voltage (VMPP) | 18.9 V |
| Max Power Current (IMPP) | 4.76 A |
| Open Circuit Voltage (VOC) | 22.3 V |
| Short Circuit Current (ISC) | 5.04 A |
| Nominal voltage | 12V |
| Max System Voltage (UL) | 1500 V |
