Manufacturer
Alcatel-Lucent
MPN
3FE25773AA
Available
3
Condition
New

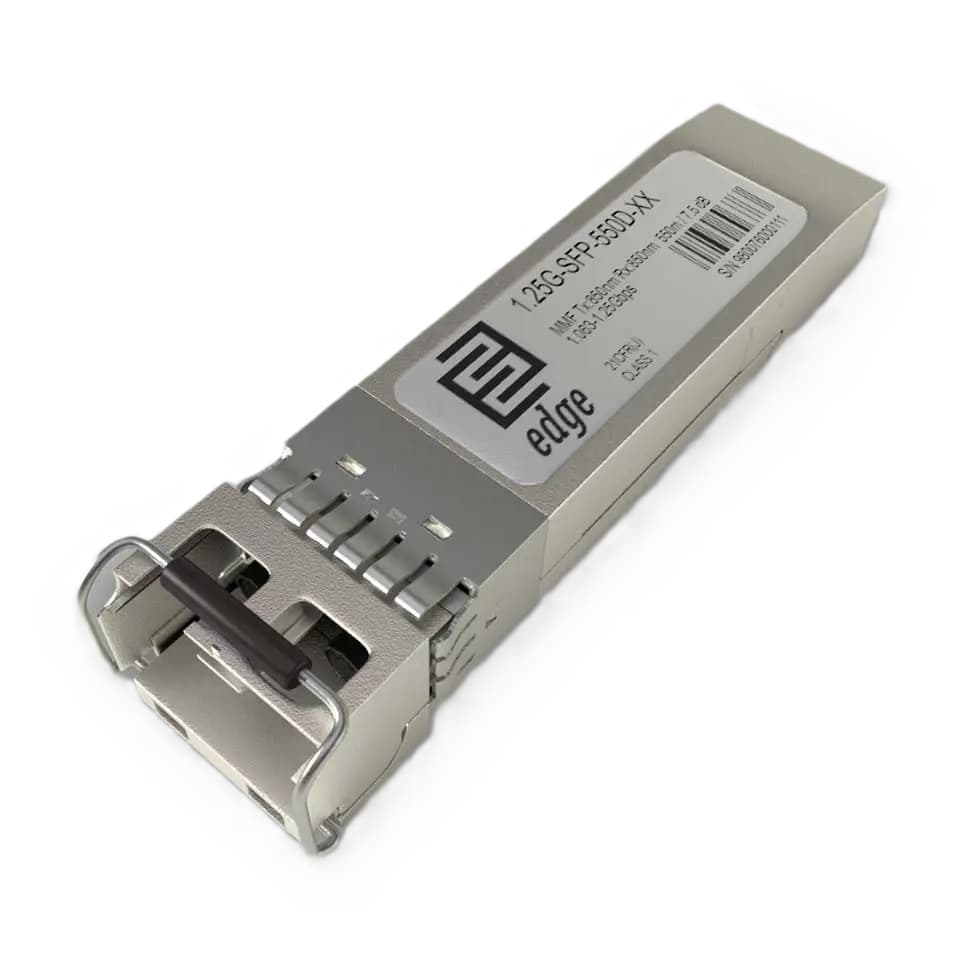

Alcatel-Lucent 3FE25773AA - Transceiver : 1000base-sx Trcvr
This transceiver is specifically designed for 1000base-sx connections, making it ideal for high-speed data transmission over short distances. With this transceiver, users can expect fast and efficient data transfer rates, making it suitable for use in a variety of networking applications. It is compatible with a wide range of Alcatel-Lucent equipment, ensuring seamless integration into existing systems.
Key Technical Data | |
|---|---|
| Media Type: | Multi-Mode Fiber (MMF) |
| TX Wavelength: | 850 nm. |
| RX Wavelength: | 850 nm. |
| Minimum Optical Budget: | 7.5 dB |
| Maximum Distance: | 550m |
| Supported Data Rate: | 1.063-1.25Gbps |
| Supported Applications: | Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps) |
| DDM/DOM: | Support |
| Temperature Range: | Standard 0°-70°C |
| Connectors: | Double LC |
| Tx Wavelength Bandwidth: | 20 nm (840-860 nm) |
| Rx Wavelength Bandwidth: | 20 nm (840-860 nm) |
| Minimum Transmitting Power: | -9.5 dB |
| Maximum Transmitting Power: | 3 dB |
| Receiver Sensitivity: | -17 dBm |
| Receiver Overload: | -3 dBm |
| Dispersion: | 110 ps/nm |
| Transmitter Type: | VSCEL Laser |
| Receiver Type: | PIN photodiode |
| Power: | +3.3V single power supply |
| Chipset: | MAXIM, MINDSPEED, SEMTECH |
| Transceiver Type: | SFP |
