Manufacturer
Opto
MPN
OPT IAC5
MOQ
85
Available
85
Condition
New

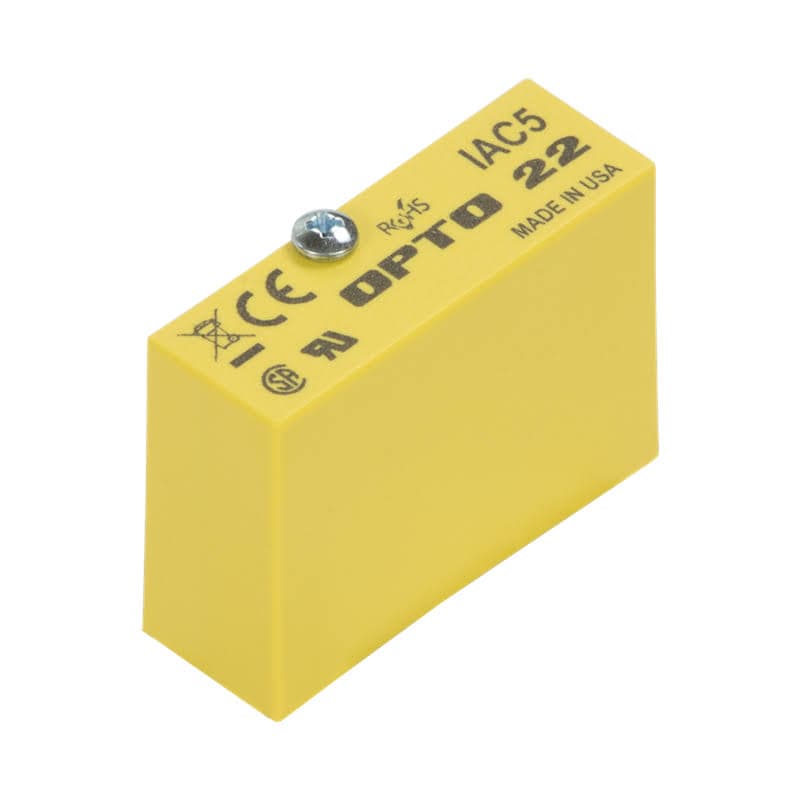

AC INPUT MOD
The IAC5 input module is used to sense ON/OFF AC voltage levels between 90-140 VAC. All AC input modules are designed with filtering on the input and a hysteresis amplifier for high noise rejection and transient-free clean switching. Each module provides up to 4000 volts (transient) of optical isolation between the field inputs and the logic output of the circuit.
Typical uses and applications include sensing the presence or absence of voltage or sensing contact closures from sources such as:
General
| Operating Ambient Temperature | - 30 to 70 °C |
| Isolation, Input-to-Output (Transient) | 4000 V |
| Output Voltage Drop: logic side | 0.4 volts @ 50 mA |
| Output Current | 50 mA |
| Output Leakage With No Input IDC5D Only | 0.1 mA @ 30 VDC 0.01 mA @ 30 VDC |
| Transistor | 30 volts breakdown |
| Agency Approvals | UL, CE, CSA, RoHS; UKCA |
Input Module Specifications
| Unit | IDC5 | IDC5B | IDC5D | IDC5G | IDC15 | IDC24 | |
| Input Voltage Range | VDC | 10–32 | 4–16 | 2.5–28 | 35–60 | 10–32 | 10–32 |
| VAC | 12–32 | 4–16 | — | 35–60 | 12–32 | 12–32 | |
| Input Current @ Max Line | mA | 25 | 45 | 30 | 6 | 25 | 25 |
| Turn-on Time | msec | 5 | 0.05 | 1 | 10 | 5 | 5 |
| Turn-off Time | msec | 5 | 0.1 | 1.5 | 10 | 5 | 5 |
| Input Allowed for No Output | mA | 1 | 0.7 | 0.2 | 0.7 | 1 | 1 |
| Volts | 3 | 1 | 1 | 7 | 3 | 3 | |
| Output Supply Voltage-Nominal | VDC | 5 | 5 | 5 | 5 | 15 | 24 |
| Output Supply Voltage-Range | VDC | 4.5–6 | 4.5–6 | 4.5–6 | 4.5–6 | 12–18 | 20–30 |
| Output Supply Current @ Nominal Logic Voltage | mA | 12 | 12 | 12 | 12 | 15 | 18 |
| Input Resistance | Ohms | 1.5k | 300 | 900 | 10k | 1.5k | 1.5k |
| Control Resistance (Rc in schematic diagram) | Ohms | 220 | 220 | 470 | 220 | 1k | 2.2k |
| Unit | IAC5 | IAC15 | IAC24 | IAC5A | IAC15A | IAC24A | |
| Input Voltage Range | VDC | 90–140 | 90–140 | 90–140 | 180–280 | 180–280 | 180–280 |
| VAC | 90–140 | 90–140 | 90–140 | 180–280 | 180–280 | 180–280 | |
| Input Current @ Max Line | mA | 5 | 5 | 5 | 5 | 5 | 5 |
| Turn-on Time | msec | 20 | 20 | 20 | 20 | 20 | 20 |
| Turn-off Time | msec | 20 | 20 | 20 | 20 | 20 | 20 |
| Input Allowed for No Output | mA | 3 | 3 | 3 | 1 | 1 | 1 |
| Volts | 45 | 45 | 45 | 45 | 45 | 45 | |
| Output Supply Voltage-Nominal | VDC | 5 | 15 | 24 | 5 | 15 | 24 |
| Output Supply Voltage-Range | VDC | 4.5–6 | 12–18 | 20–30 | 4.5–6 | 12–18 | 20–30 |
| Output Supply Current @ Nominal Logic Voltage | mA | 12 | 15 | 18 | 12 | 15 | 15 |
| Input Resistance | Ohms | 28k | 28k | 28k | 70k | 70k | 70k |
| Control Resistance (Rc in schematic diagram) | Ohms | 220 | 1k | 2.2k | 220 | 1k | 2.2k |
