Manufacturer
Electro Wire Incorporated
MPN
56981901
MOQ
79
Available
200
Condition
New

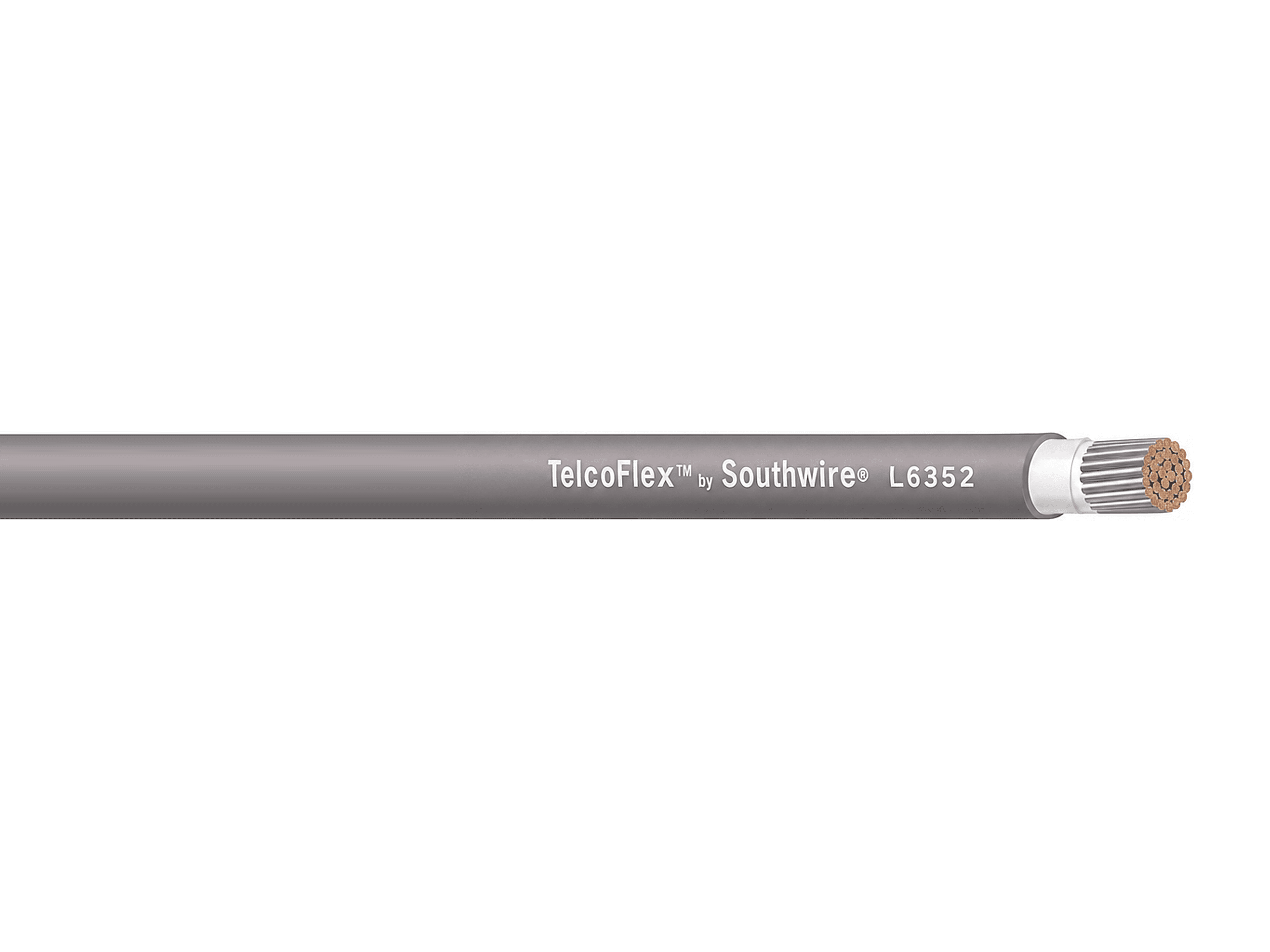

2 L2 Black Ks24194--sw 56975301
Southwire’s TelcoFlex II Cable is single conductor with a class I (modified) bunched (8 and 6 AWG) and rope-bunched (4 AWG and larger) stranded tinned copper conforming to ASTM B-33 and Underwriter’s Laboratories requirements. An opaque mylar tape sh all be applied over the conductor to facilitate stripping.
Insulation is 90C rated low smoke, non-halogen, TelcoHyde(TM) 5221 conforming to Underwriter’s Laboratories Standard 44 and Telcordia Specification GR-347-CORE, also UL and CSA 105C AWM rated . The insulation has a limiting oxygen index of 35%.
UL Listed As: Central Office Power Cable
UL Listed Standard 44: Thermoset Insulated Type RHH/ST1
FT-4 Flame Test
VW-1
ASTM B-33 and B172 for Flexible Strand
Physical and Electrical tests in accordance with UL Standard 44 Requirements
CSA AWM I B 10GR - 347 - Core Compliant by Telcordia
Meets the Requirements of WP93811 for Cold Flow (Creep) and Cut Through
Non-Halogen
Low Smoke - LS
IEC 60674 and 60332
| Armor | NO |
|---|---|
| Composite | NO |
| Conductor Count | 1 CONDUCTOR |
| Conductor Material | TINNED OR COATED COPPER |
| Conductor Size | 4 AWG |
| Conductor Type | STRANDED |
| Earth/Ground Wires | NO |
| Jacket Material | UNJACKETED/NON-SHEATHED |
| Product Type | TELCO POWER |
| Screen/Shield | UNSHIELDED |
| Voltage Range | 600V |
| UNSPSC Code | 26121642 |
Please refer to the following attachments for additional details on the product.
No specifications available.
