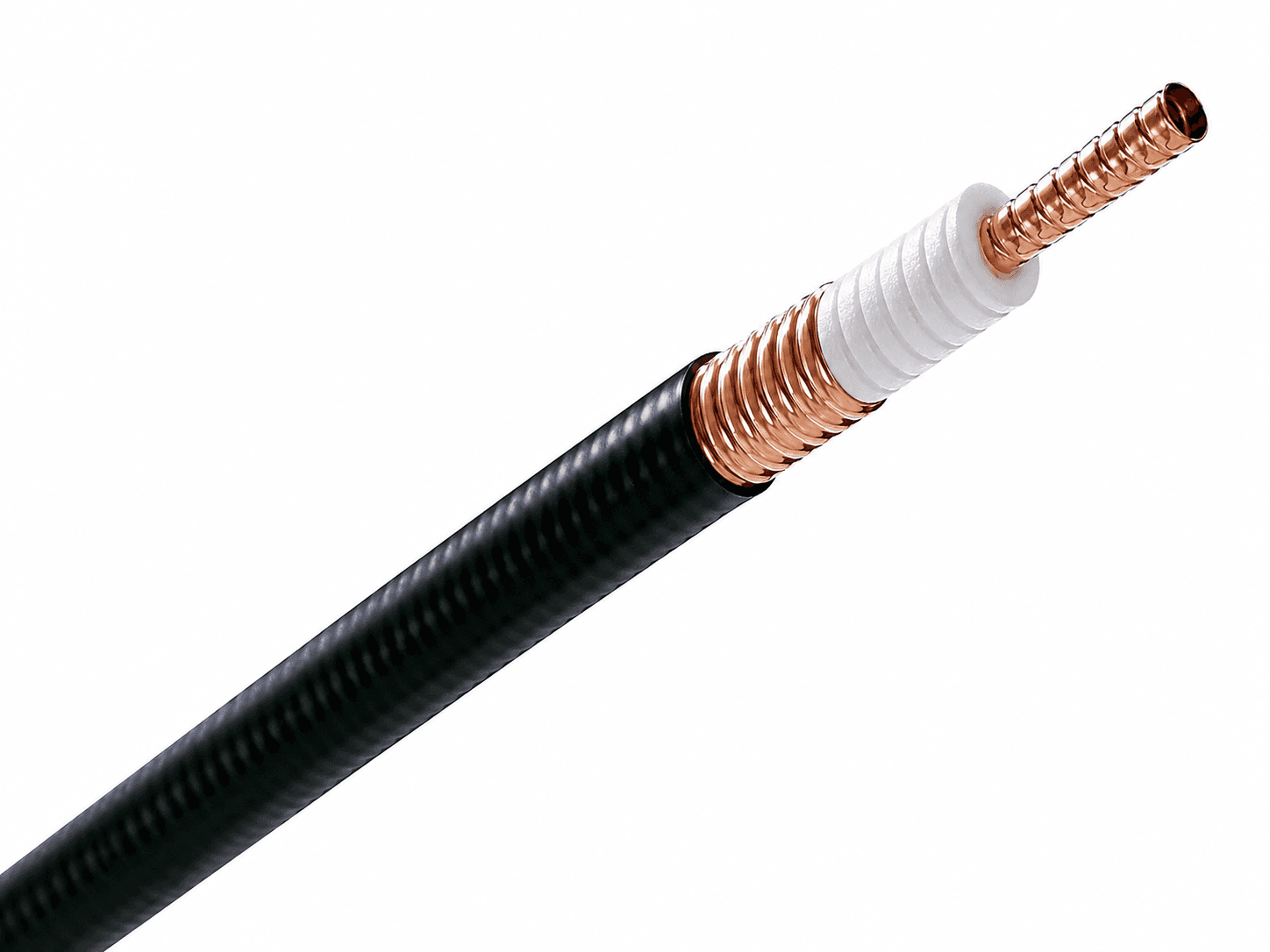

6-units min. CommScope Virtual Air Coaxial Cable - 50-ohm, 1-1/4, Black PE Jacket - for Professional Audio and Video Installations - AVA6P-50-C

The CommScope AVA6P-50-C is a high-quality coaxial cable designed for use in various audio and video applications. This cable features a 50-ohm impedance and a 1-1/4 inch diameter, making it suitable for a wide range of installations. The AVA6P-50-C is constructed with a durable jacket that provides protection against wear and tear, ensuring long-lasting performance. This cable is part of the AVA series from CommScope, known for its superior quality and reliability. With its high-performance capabilities, the AVA6P-50-C is an ideal choice for professional audio and video installations.

General Specifications

Flexibility: Standard
Jacket Color: Black
Dimensions: Diameter Over Dielectric: 34.036 mm (1.34 in), Diameter Over Jacket: 39.624 mm (1.56 in), Inner Conductor OD: 14.0208 mm (0.552 in), Outer Conductor OD: 36.068 mm (1.42 in), Nominal Size: 1-1/4 in


Electrical Specifications

Cable Impedance: 50 ohm ± 1 ohm
Capacitance: 72 pF/m (21.946 pF/ft)
dc Resistance, Inner Conductor: 1.74 ohms/km (0.53 ohms/kft)
dc Resistance, Outer Conductor: 0.75 ohms/km (0.229 ohms/kft)
dc Test Voltage: 8500 V
Inductance: 0.187 µH/m (0.057 µH/ft)
Insulation Resistance: 100000 MOhms-km
Jacket Spark Test Voltage (rms): 10000 V
Operating Frequency Band: 1 – 4000 MHz
Peak Power: 180 kW
Velocity: 92%


Material Specifications

Dielectric Material: Foam PE
Jacket Material: PE
Inner Conductor Material: Corrugated copper tube
Outer Conductor Material: Corrugated copper


Mechanical Specifications

Minimum Bend Radius, multiple Bends: 203.2 mm (8 in)
Minimum Bend Radius, Single Bend: 152.4 mm (6 in)
Number of Bends, minimum: 15
Number of Bends, typical: 40
Tensile Strength: 154 kg (339.511 lb)
Bending Moment: 29.8 N-m (263.752 in lb)
Flat Plate Crush Strength: 1.3 kg/mm (72.797 lb/in)


*Please note: This product uses AVA6 connectors, not LDF.
