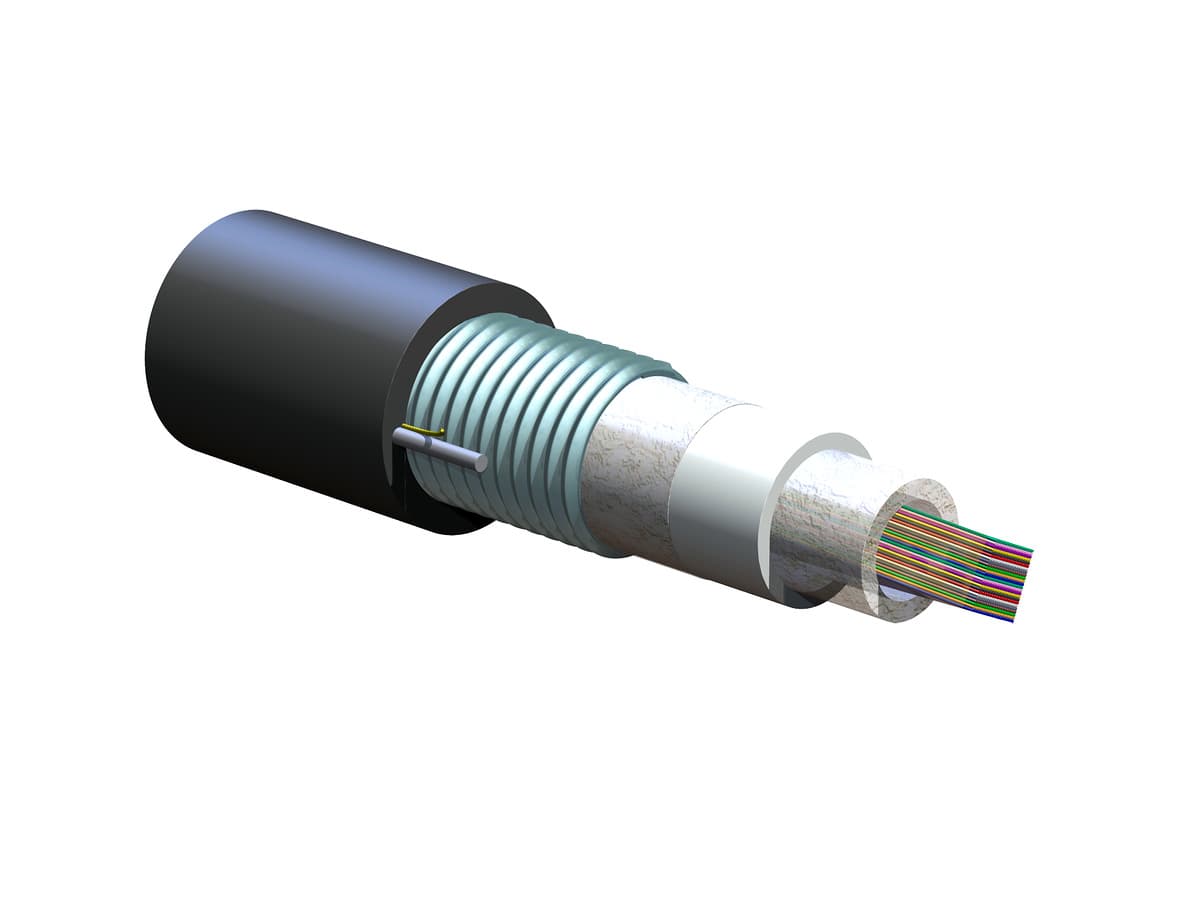

50-units min. Corning 432-fiber Sst-ultraribbon# Gel-free Cable Armored Smf-28e+ Max: 0.35/0.35/0.25 Db/km G.652.d Print In Ft Special Print: Soc Code - 432EV5-14100D53
Slide 1 of 1
Manufacturer
Corning
MPN
432EV5-14100D53
MOQ
50
Available
37,292
Condition
New
50-units min. Corning 432EV5-14100D53 - 432-fiber Sst-ultraribbon# Gel-free Cable Armored Smf-28e+ Max: 0.35/0.35/0.25 Db/km G.652.d Print In Ft Special Print: Soc Code
FEATURES
- Gel-free waterblocking technology Craft-friendly cable preparation
- Innovative waterblocking technology Provides ribbon to cable coupling
- Up to 432 fibers in a compact design Easily fits in 1.25 in diameter inner duct
- Each 12-fiber ribbon individually numbered Easy identification
Please refer to the following attachments for additional details on the product.
- Installation Methods:
- Aerial, Horizontal, Direct Buried, Duct, Riser
- Cable Type:
- Ribbon
- Environment:
- Outdoor
- Product Type:
- Corrugated Steel Armor
- Fiber Category:
- Single-mode (OS2)
- Cable geometry:
- Round
- Temperature Range, Installation:
- -30 °C to 70 °C (-22 °F to 158 °F )
- Temperature Range, Operation:
- -40 °C to 70 °C (-40 °F to 158 °F )
- Temperature Range, Storage:
- -40 °C to 70 °C (-40 °F to 158 °F )
- Buffer Tube Color:
- Natural
- Fiber Count:
- 432
- Buffer Tube Diameter:
- 15.4 mm (0.61 in)
- Number of Ripcords:
- 3
- Fiber Coloring:
- Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
- Outer Jacket Color:
- Black
- Outer Jacket Material:
- Polyethylene (PE)
- Tensile Strength Elements and/or Armoring - Layer 1:
- Corrugated steel tape armor
- Tensile Strength Elements and/or Armoring - Layer 2:
- Steel strength members
- Tape:
- Waterblocking foam tape
- Tape, Layer 1:
- Water-swellable
- Tape, Layer 2:
- Water-swellable
- Ribbons per Tube:
- 18
- Fibers per Ribbon:
- 24
- Max. Tensile Strength, Long-Term:
- 890 N (200.08 lbf)
- Max. Tensile Strength, Short-Term:
- 2700 N (606.98 lbf)
- Nominal Outer Diameter:
- 21.8 mm (0.86 in )
- Min. Bend Diameter Operation:
- 436 mm (17.17 in)
- Min. Bend Diameter Installation:
- 654 mm (25.75 in)
- Fiber Code:
- E
- Fiber Category:
- OS2
- Fiber Type:
- Single-mode (OS2) / 250 µm
- Fiber Name:
- Single-mode (OS2)
- Maximum Attenuation:
- 0.35 dB/km / 0.35 dB/km / 0.25 dB/km
- Wavelengths:
- 1310 nm / 1383 nm / 1550 nm
- Cable Weight:
- 409 kg/km (274.84 lb/1000 ft)
