Manufacturer
CellMax Technologies
MPN
CELLMAX-O-25
MOQ
5
Available
17
Condition
New

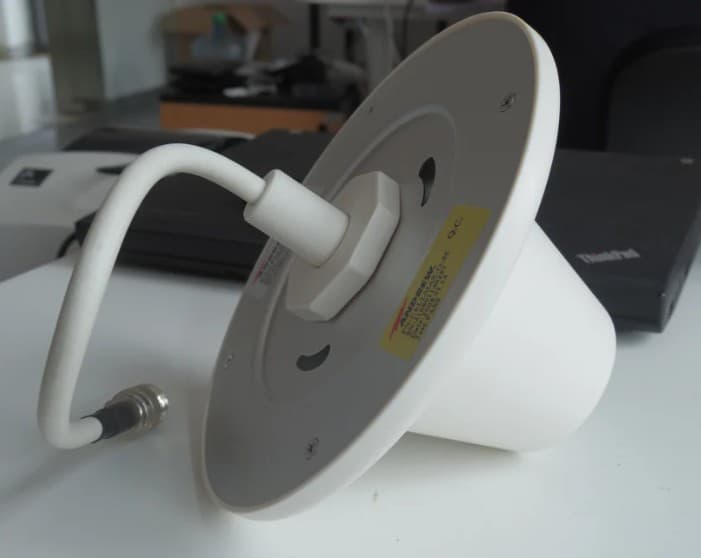

806-960/1710-2500 Mhz Ceilingmt Ind Ant
The CellMax Technologies CELLMAX-O-25 is a high-performance ceiling mount indoor antenna designed for use in cellular networks. It operates on frequencies of 806-960 MHz and 1710-2500 MHz, making it compatible with a wide range of cellular devices.
This antenna is ideal for use in large indoor spaces such as offices, shopping malls, and public buildings. It is designed to provide strong and reliable signal coverage, ensuring that users can stay connected and have clear voice calls and fast data speeds.
Specifications | |
| Antenna Type | Omnidirectional |
| Operating Frequency Band | 1710 – 2700 MHz | 806 – 960 MHz |
| Color | White |
| Interface | N Female |
| Cable | RG58, plenum rated Radome |
| Material | ABS, UV resistant |
Electrical Specifications | |
| Operating Frequency Band | 806 – 960 MHz |
| Beamwidth, Horizontal | 360° omnidirectional |
| Beamwidth, Vertical | 100° nominal |
| Gain at Frequency Band | 3.0 dBi @ 806–960 MHz |
| Impedance | 50 ohm |
| Input Power, maximum | 50 W |
| Polarization | Vertical |
| Return Loss | 12.0 dB |
| VSWR | 1.6:1 |
Electrical Specifications (Band 2) | |
| Operating Frequency Band | 1710 – 2700 MHz |
| Beamwidth, Horizontal | 360° omnidirectional |
| Beamwidth, Vertical | 100° nominal |
| Gain at Frequency Band | 3.0 dBi @ 1710–2700 MHz |
| Return Loss at Frequency Band | 10.0 dB @ 2500–2700 MHz | 12.0 dB @ 1710 –2500 MHz |
| VSWR | 1.6:1 @ 1710–2500 MHz | 1.9:1 @ 2500 –2700 MHz |
Mechanical Specifications | |
| Mounting | Thruhole ceiling mount (optional) |
| Pigtail Length | 254.0 mm | 10.0 in |
