5-units min. Burndy #6 Awg - 2 Hole - 1/4" Stud Size - 1" Space - Window - 90 Degree Tongue - Long Barrel - YAZ6C2TC14E190
Slide 1 of 1
Manufacturer
Burndy
MPN
YAZ6C2TC14E190
MOQ
5
Available
20
Condition
New

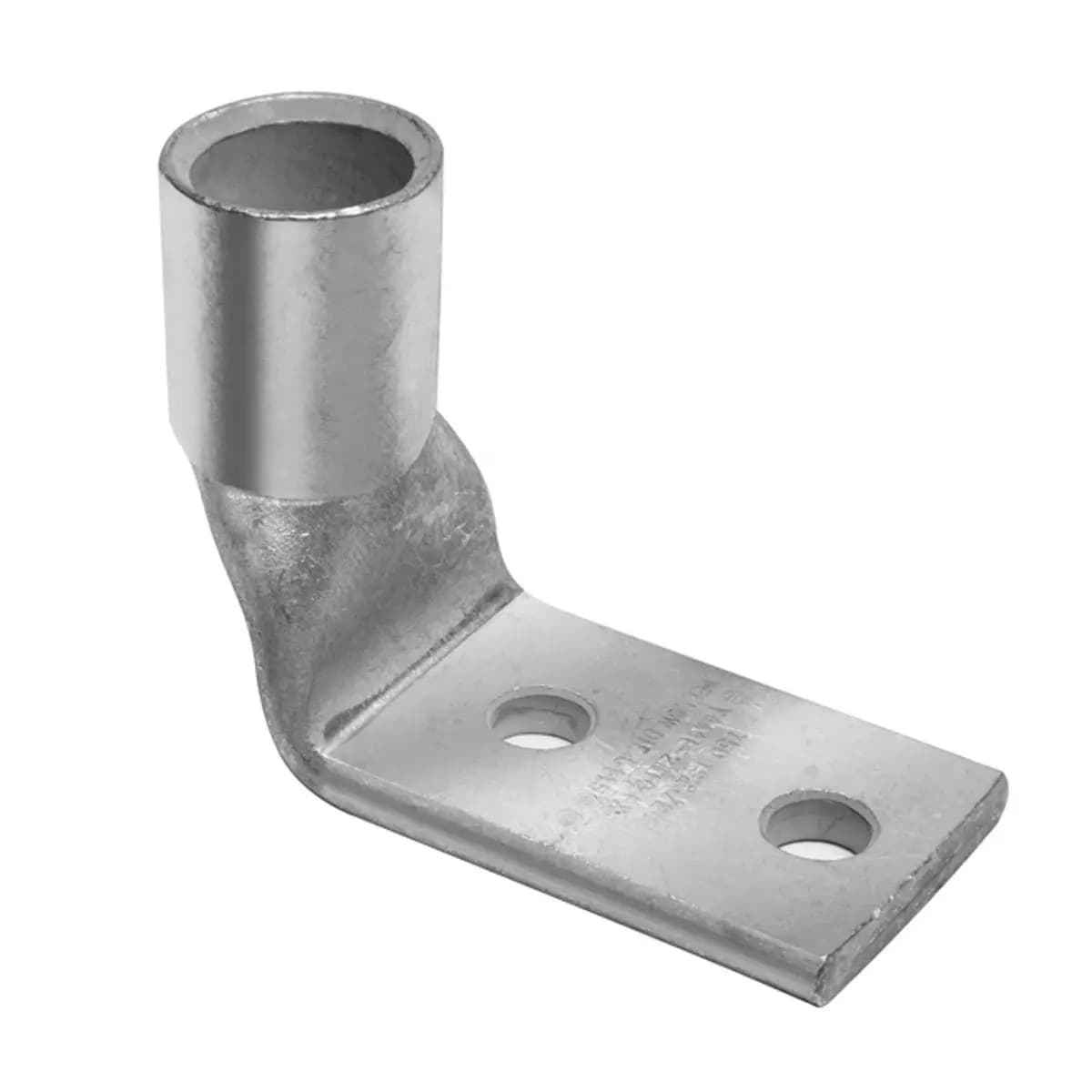

Burndy YAZ6C2TC14E190 - #6 Awg - 2 Hole - 1/4" Stud Size - 1" Space - Window - 90 Degree Tongue - Long Barrel
The Burndy YAZ6C2TC14E190 is a high-quality electrical connector designed for use with #6 AWG wires. It features a 2-hole design and a 1/4" stud size, making it compatible with a wide range of wire sizes.
The connector also has a 1" space, providing ample room for wire connections. The 90 degree tongue allows for easy installation and the long barrel design ensures a secure and reliable connection.
Specifications | |
|---|---|
| Property | Specification |
| Material | Copper |
| Connector Type | Terminal |
| Lug Type | Compression |
| Barrel Style | Skived |
| Barrel Type | Long |
| Bolt Hole Size (in) | 0.27 |
| Conductor Copper Str Size (AWG) | 6 |
| Conductor Material | Copper |
| Finish/Plating | Tin-Plated, Electro-Tin Plated |
| Height (in) | 1.5 |
| Hole Size (in) | 0.27 |
| Hole Size (mm) | 7 |
| Kilovolt-Amp (kVA) | 35 |
| Length Overall (in) | 1.88 |
| Max Voltage (V) | 35000 |
| Min Voltage (V) | 600 |
| Number of Holes | 2 |
| Outside Diameter (in) | 0.29 |
| Pad Width (in) | 0.45 |
| Plated | Yes |
| Strip Length (in) | 1-3/16 |
| Tongue Angle | 90 |
| Tongue Type | Standard Tongue |
