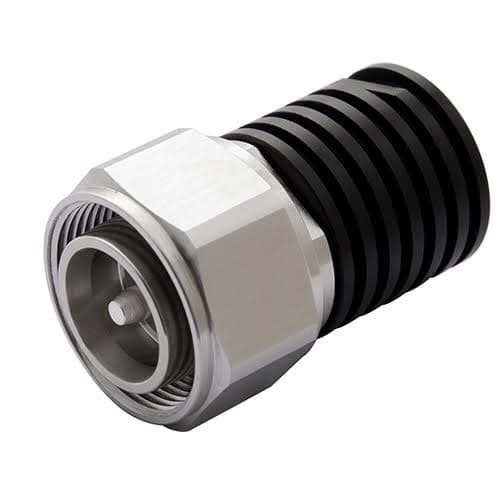

4-units min. CommScope TERMINATION LOAD, 2 WATT, 50 OHM, 4.3-10 MALE: - T-2-UW-43-M

T-2-UW-43-M TERMINATION LOAD 2 WATT 50 OHM 4.3-10 MALE: The CommScope T-2-UW-43-M is a termination load designed for use with 2 watt, 50 ohm, 4.3-10 male antennas. This product is manufactured by CommScope, a leading provider of communication infrastructure solutions. The T-2-UW-43-M is designed to provide reliable performance and is suitable for a variety of applications.General SpecificationsDevice TypeTermination LoadApplicationIndoor/OutdoorColorBlackInner Contact PlatingSilverInterface4.3-10 MaleOuter Contact PlatingTrimetalDimensionsLength38 mm | 1.496 inDiameter, maximum20 mm | 0.787 inElectrical SpecificationsAverage Power at Temperature1.7 W @ 60 °CAverage Power, maximum2 WImpedance50 ohmOperating Frequency Band0 – 6000 MHzVSWR1.15Derating CurveClick on image to enlarge.  Environmental SpecificationsOperating Temperature-35 °C to +50 °C (-31 °F to +122 °F)Relative HumidityUp to 100%Ingress Protection Test MethodIEC 60529:2001, IP65Packaging and WeightsHeight, packed68 mm | 2.677 inWidth, packed53 mm | 2.087 inLength, packed58 mm | 2.283 inWeight, gross0.08 kg | 0.176 lbWeight, net0.06 kg | 0.132 lb

Please refer to the following attachments for additional details on the product.
