Cookie Policy4-units min. CommScope 1 5/8 Grounding Kit - 220498

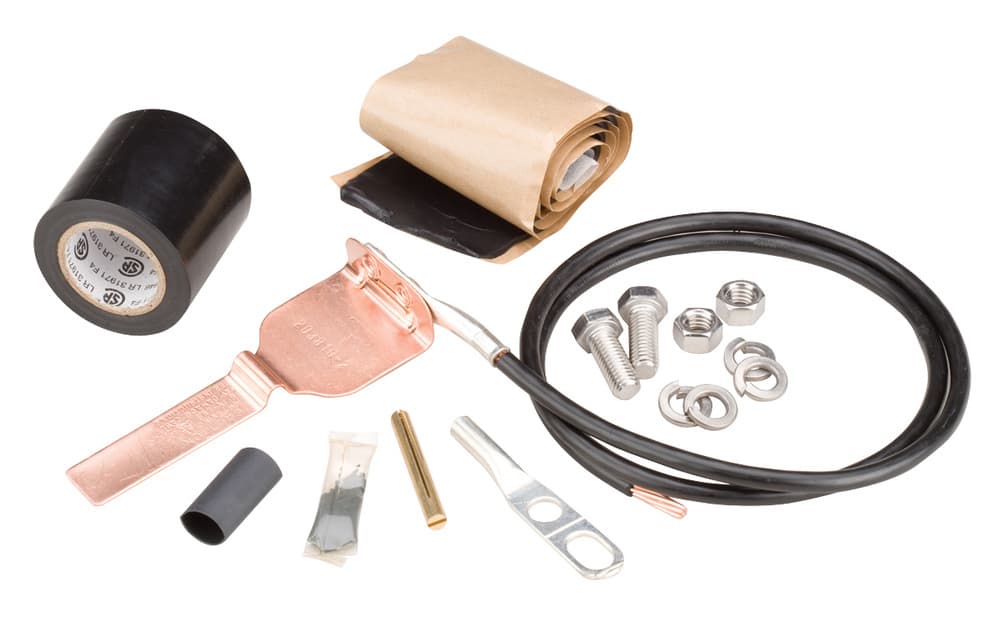

4-units min. CommScope 220498 - 1 5/8 Grounding Kit
Please refer to the following attachments for additional details on the product.
- Bonding Conductor Jacketing Material:
- PVC
- Bonding Conductor Material:
- Copper
- Bonding Conductor Wire Size:
Warranty
10-Day Functional Warranty
Cable Type:Corrugated | Elliptical waveguide Grounding Kit Type:Standard Grounding Kits Grounding Strap Material:Copper Lug Attachment:Field attached Bonding Conductor Length:1524 mm | 60 in Cable Jacketing Removal Length, maximum:58.42 mm | 2.3 in Cable Jacketing Removal Length, minimum:55.88 mm | 2.2 in Compatible Diameter, maximum:50.8 mm | 2 in Compatible Diameter, minimum:49.022 mm | 1.93 in Waveguide Size:WR137 | WG14 | R70 | WR159 | WG13 | R58 Current Handling:Tested to withstand 100,000 amps peak current surge Current Handling Test Method:MIL-STD-1757 Grounding, Bonding and Shielding Test Method:MIL-STD-188-124A Lightning Protection Test Method:IEC 1024-1 Operating Temperature:-40 °C to +85 °C (-40 °F to +185 °F) Storage Temperature:-40 °C to +80 °C (-40 °F to +176 °F) Blowing Rain Test Method:MIL-STD-810, Method 506 Corrosion Test Method:MIL-STD-1344, Method 1001 Freezing Rain/Icing Test Method:MIL-STD-810, Method 521 Humidity Test Method:MIL-STD-1344, Method 1002 Immersion Test Method:IEC 60529:2001, IP68 UV Resistance Test Method:MIL-STD-810, Method 505 Vibration Test Method:MIL-STD-202, Method 214 Weatherproofing Method:Butyl and electric tape Weight, gross:0.83 kg | 1.83 lb
