Manufacturer
Opto
MPN
OPT DC60S5
MOQ
34
Available
34
Condition
New

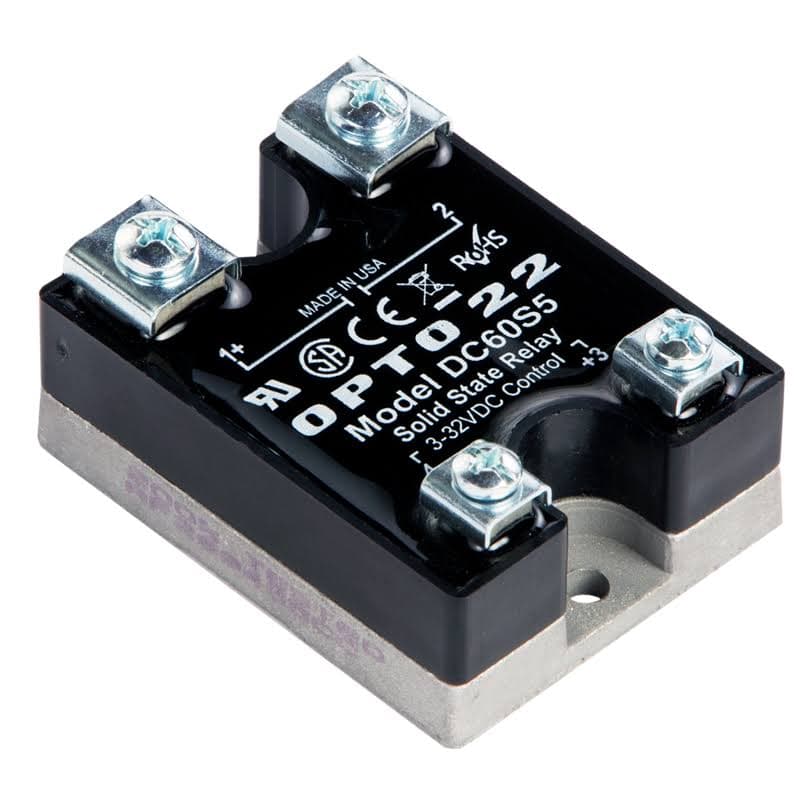

DC RELAY 5AMP 60V
The DC60S5 is a DC-controlled Power Series relay that switches 60 VDC at up to 5 A.
Power Series relays provide 4000 volts of isolation between input and output, and offer zero-voltage turn-on and zero-current turn-off. They are UL and CSA recognized and are a CE component.
| DC60P or DC60MP | DC200P or DC200MP | DC60S3 | DC60S5 | |
| Operating Voltage Range | 5–60 VDC | 5–200 VDC | 5–60 VDC | 5–60 VDC |
| Forward Voltage Drop | 1.5 volts at 3 amps | 1.5 volts at 1 amp | 1.5 volts at 3 amps | 1.5 volts at 5 amps |
| Nominal Currrent Rating (Amps) | 3* | 1* | 3* | 5* |
| Off-State Blocking | 60 VDC | 250 VDC | 60 VDC | 60 VDC |
| Signal Pickup Voltage | 3 VDC 32 Volts** allowed | 3 VDC 32 Volts** allowed | 3 VDC 32 Volts allowed | 3 VDC 32 Volts allowed |
| Signal Dropout Voltage | 1 VDC | 1 VDC | 1 VDC | 1 VDC |
| Signal Input Impedeance | 1,000 ohms | 1,000 ohms | 1,000 ohms | 1,000 ohms |
| 1 Second Surge | 5 amps | 2 amps | 5 amps | 10 amps |
| Operating Temp. Range | –40 °C to 100 °C | –40 °C to 100 °C | –40 °C to 100 °C | –40 °C to 100 °C |
| Isolation Voltage | 4,000 VRMS | 4,000 VRMS | 4,000 VRMS | 4,000 VRMS |
| Off-State Leakage | 1 mA maximum | 1 mA maximum | 1 mA maximum | 1 mA maximum |
| Package Type | P/MP series | P/MP series | Power series | Power series |
| Turn-on Time | 100 microseconds | 100 microseconds | 100 microseconds | 100 microseconds |
| Turn-off Time | 750 microseconds | 750 microseconds | 750 microseconds | 750 microseconds |
