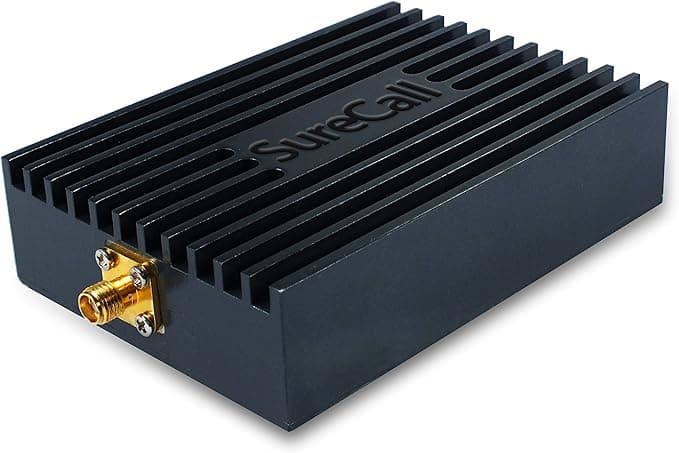

3-units min. Unknown Direct Connect Dual-band Amplifier. Connects To Sma Port Of Modem. Include - SC-SoloI-15
Slide 1 of 1
Manufacturer
Unknown
MPN
SC-SoloI-15
MOQ
3
Available
1
Condition
New
Direct Connect Dual-band Amplifier. Connects To Sma Port Of Modem. Include
The Unknown SC-SoloI-15 is a powerful direct connect dual-band amplifier designed to enhance the signal strength and performance of your modem. This amplifier is compatible with any modem that has an SMA port, making it a versatile and convenient choice for improving your internet connection.
It works by amplifying the incoming signal from your modem, providing a stronger and more stable connection for all your online activities. This amplifier is equipped with dual-band technology, which means it can boost both 2.4GHz and 5GHz frequencies. It also has automatic gain control to prevent signal overload and maintain a consistent signal strength.
Features:
- Machine-to-machine signal booster for 2G/3G cellular frequencies
- Direct connect / boosts signal directly to wireless modems and data cards
- Increases 2G/3G signal strength for all US carriers
- Quality metal construction is durable and resilient
- Simple plug-and-play installation
Specifications | |
| Uplink Frequency Range (MHz): | 824-849 / 1850-1910 |
| Downlink Frequency Range (MHz): | 869-894 / 1930-1990 |
| Input/Output Impedance: | 50 Ohm |
| Maximum Gain: | 15 dB |
| Noise Figure: | 5 dB |
| VSWR: | ≤2.0 |
| AC Power Transmitter: | 110VAC, 60Hz IN / 5-12V DC OUT |
| Maximum Output Power: | 1 Watt EIRP |
| Cable: | RG-58, RG-174 |
| RF Connectors: | SMA Female (both ends) |
| Power Consumption: | <10W |
| Dimensions: | 4.875” x 2.75” x 1” |
| Weight: | .57 lb |
Please refer to the following attachments for additional details on the product.
No specifications available.
