3-units min. HT-Tech Passive Probe, 10:1, 200mhz, 2-pack - N2140A-N2140A

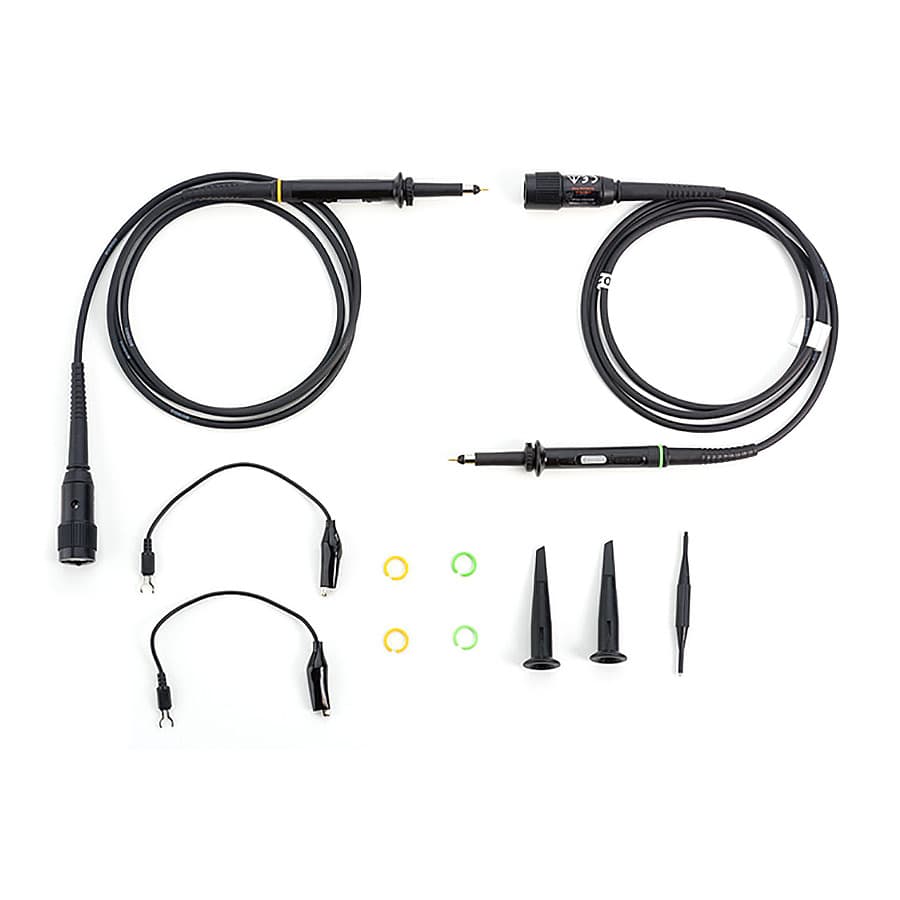

HT-Tech N2140A-N2140A - Passive Probe, 10:1, 200mhz, 2-pack

The HT-Tech N2140A-N2140A is a pack of two high-quality passive probes designed for use in electronic testing and measurement applications. These probes have a 10:1 attenuation ratio and a bandwidth of 200MHz, making them suitable for a wide range of signal types and frequencies. Each probe features a durable and lightweight design, making them easy to handle and transport.

The N2140A-N2140A probes are compatible with a variety of oscilloscopes and other test equipment, making them a versatile and essential tool for any electronics lab or workshop. With their high-quality construction and reliable performance, these probes are a must-have for any technician or engineer working with electronic circuits.

Highlights

bandwidth DC to 200 MHz

switchable 1:1 or 10:1 attenuation ratio

input resistance of 1 MΩ (1:1) or 10 MΩ (10:1)

maximum input of 150 Vrms CAT II (1:1) or 300 Vrms CAT II (10:1)

100 pf (1:1) of 15 pf (10:1) input capacitance

compatible with Keysight InfiniiVision Series oscilloscopes with 1 MΩ input
