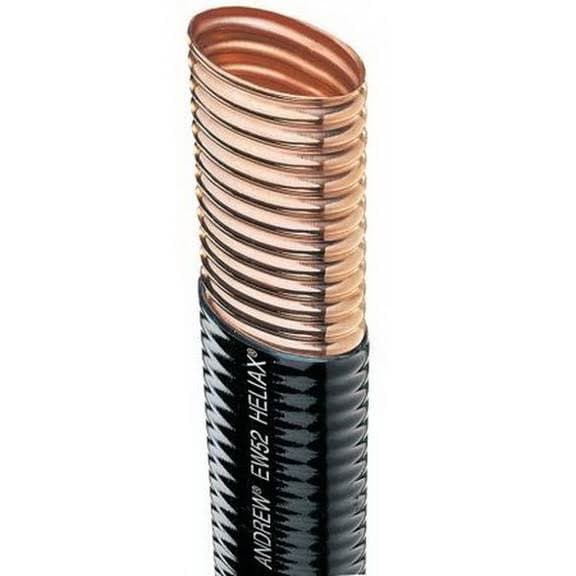

3-units min. CommScope 5.60-6.425 GHz Elliptical Waveguide for Network Infrastructure - EW52

The CommScope EW52 Elliptical Waveguide. Upgrade your communication system with this high-performance elliptical waveguide designed for professionals who demand the best in signal transmission. Manufactured by the renowned brand HELIAX®, this waveguide offers exceptional performance and reliability, ensuring seamless communication in various applications.

Key Features and Benefits:

• Wide operating frequency band (5.6 – 6.425 GHz) for versatile use
• Low attenuation and high return loss for optimal signal transmission
• Corrugated copper conductor for enhanced durability and performance
• Black PE jacket for added protection and longevity
• Compliant with various regulatory standards, including ISO 9001:2015, ROHS, and REACH-SVHC

Technical Specifications:

The CommScope EW52 elliptical waveguide boasts a range of impressive technical specifications, including a diameter over the jacket of 57.2 mm (E Plane) and 33.3 mm (H Plane), and a cable volume of 1045 L/km. With an eTE11 mode cutoff of 3.65 GHz and group delay at frequency of 126 ns/100 ft @ 6.200 GHz, this waveguide ensures efficient signal transmission for your communication needs.

Additionally, the EW52 features low attenuation across various frequencies, ranging from 4.126 at 5.6 GHz to 3.802 at 6.4 GHz. The return loss/VSWR is 1.150 at 5.6-6.425 GHz, ensuring minimal signal loss during transmission.

Constructed with a corrugated copper conductor and PE jacket material, the EW52 is designed for durability and longevity. The waveguide can withstand installation temperatures of -40 °C to +60 °C, operating temperatures of -55 °C to +85 °C, and storage temperatures of -70 °C to +85 °C.

Easy Installation and Maintenance:

The CommScope EW52 elliptical waveguide is designed for easy installation and maintenance, with minimum bend radius values for multiple and single bends in both E and H planes. The maximum twist is 3.281 °/m, allowing for flexibility during installation.

With a cable weight of 0.88 kg/m, the EW52 is lightweight and easy to handle, making it an ideal choice for professionals seeking a high-quality waveguide solution.

Don't compromise on your communication system – invest in the CommScope EW52 elliptical waveguide for superior performance and reliability. The CommScope EW52 Elliptical Waveguide is your go-to solution for seamless signal transmission in various applications.
