3-units min. Blonder Tongue Laboratories, Inc. Ip Input Module Use With Meq1000a/b - IPI1000 - 1002608

Ip Input Module Use With Meq1000a/b

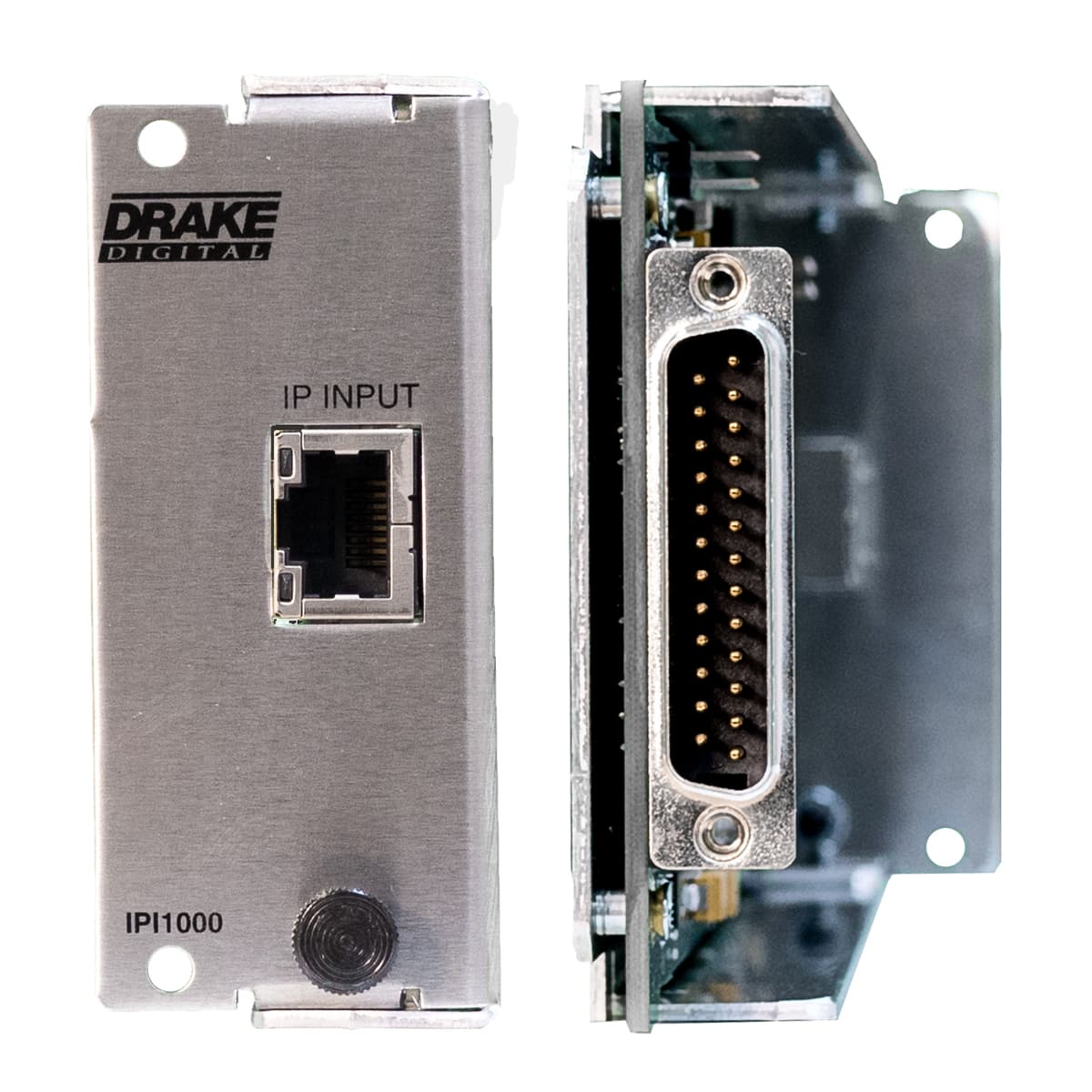

The Blonder Tongue Laboratories, Inc. IPI1000 - 1002608 is an IP input module designed for use with the MEQ1000A/B encoder. This module allows for the reception of IP streams and conversion to baseband signals for distribution over a cable network.

It is compatible with both MPEG-2 and MPEG-4 video formats and supports up to 1080p resolution. The IPI1000 - 1002608 is a reliable and efficient solution for delivering high-quality video content over IP networks.

Features:

Installs in either input bay A, Input bay B or both on a MEQ1000A/B

Accepts UDP or RTP protocols

GigE (1000Base-T Ethernet) Input

1 x SPTS or 1 x MPTS (up to 20 program streams, MPTS only)

User selectable IP and Port address

Supports IGMP v2 or v3, or auto responds with the appropriate version

Multiplex with other program streams from various MEQ1000 input modules

QAM and ASI output from the MEQ1000

Custom MPEG program number or VCT (virtual channel tables) from MEQ1000 if desired
