286-units min. Unknown 24dmst-j Zigbee Module 802.15.4 Pcb, Rpsma, U.fl - XB3
Slide 1 of 1
Manufacturer
Unknown
MPN
XB3
MOQ
286
Available
0
Condition
New

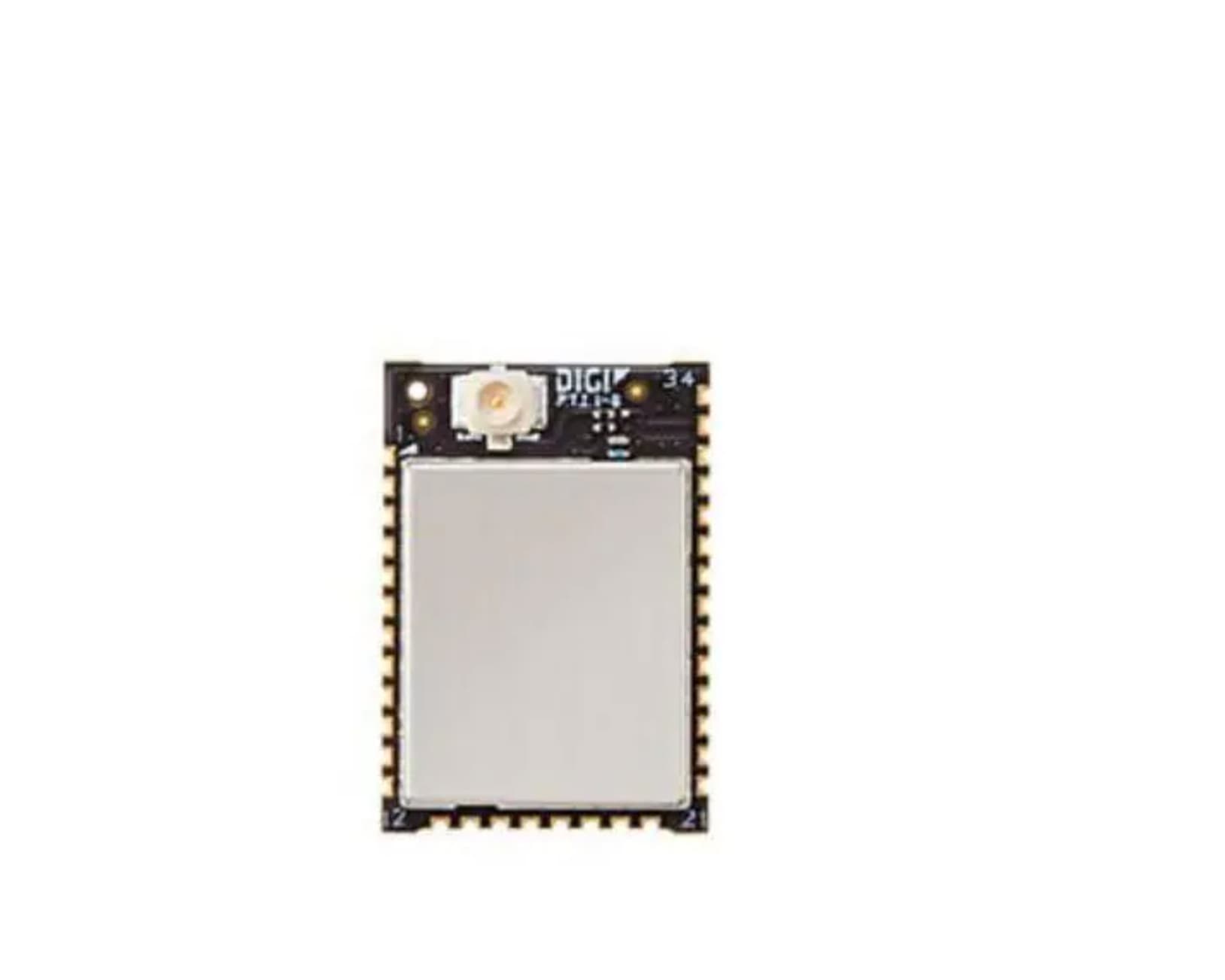

Unknown XB3 - 24dmst-j Zigbee Module 802.15.4 Pcb, Rpsma, U.fl
The Unknown XB3 - 24dmst-j Zigbee Module is a high-quality wireless communication module designed for use in various electronic devices. It utilizes the 802.15.4 standard, making it compatible with a wide range of devices and networks. This module features a compact PCB design and is equipped with both Rpsma and U.fl connectors, providing flexibility in antenna options.
Specifications | |
| Frequency: | 2.4 GHz |
| Data Rate: | 250 kb/s |
| Sensitivity: | - 103 dBm |
| Supply Voltage - Min: | 2.1 V |
| Supply Voltage - Max: | 3.6 V |
| Supply Current Transmitting: | 40 mA |
| Supply Current Receiving: | 17 mA |
| Output Power: | 8 dBm |
| Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | + 85 C |
| Protocol - ANT, Thread, Zigbee - 802.15.4: | 802.15.4, Zigbee |
| Packaging: | Tray |
| Antenna Connector Type: | PCB, RPSMA, u.FL |
| Interface Type: | I2C, SPI, UART |
| Operating Supply Voltage: | 2.1 V to 3.6 V |
Please refer to the following attachments for additional details on the product.
No specifications available.
