Manufacturer
Belden
MPN
DEDN168F
MOQ
28
Available
0
Condition
New

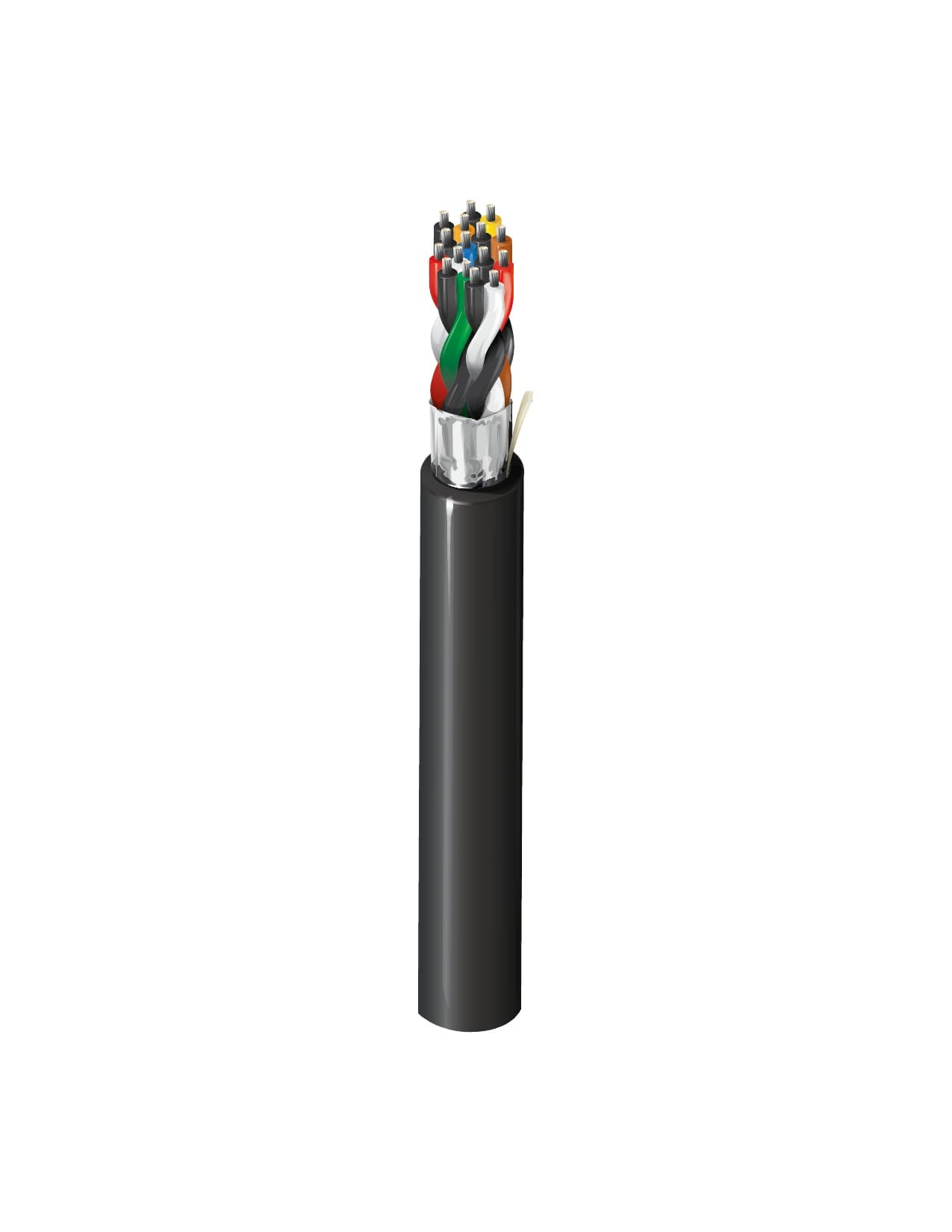

*Digital Electricity, 8 Pr #16 Str TC
The Belden DEDN168F is a high-quality digital electricity cable designed for various industrial and commercial applications. It features 8 conductors of #16 stranded tinned copper, providing excellent conductivity and durability.
This cable is specifically designed for digital electricity transmission, making it ideal for use in data centers, power plants, and other high-tech facilities.
Specifications | |
Conductor | |
| Size | 16 |
| Stranding | 7x24 |
| Material | TC - Tinned Copper |
Insulation | |
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.017 in (0.43 mm) |
Outer Shield | |
| Shield Type | Tape |
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
Outer Jacket | |
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.043 in (1.1 mm) |
| Nom. Diameter | 0.593 in (15.1 mm) |
Electricals | |
| Nom. Conductor DCR | 4.55 Ohm/1000ft |
| Nom. Capacitance Cond-to-Cond | 29.25 pF/ft (95.96 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 52.75 pF/ft (173.1 pF/m) |
| Max. Current | 5.5 Amps per Conductor at 25ºC (35°C Temperature Rise) |
| Nom Outer Shield DCR | 4.7 Ohm/1000ft (15 Ohm/km) |
Voltage | |
| UL Voltage Rating | 450 V RMS |
Temperature | |
| UL Temperature | 105°C |
| Operating | -30°C To +105°C |
| Max. Pull Tension | 570 lbs (260 kg) |
| Bulk Cable Weight | 220 lbs/1000ft |
Please refer to the following attachments for additional details on the product.
