Manufacturer
STMicroelectronics
MPN
STD12NF06LT4
MOQ
257
Available
0
Condition
New

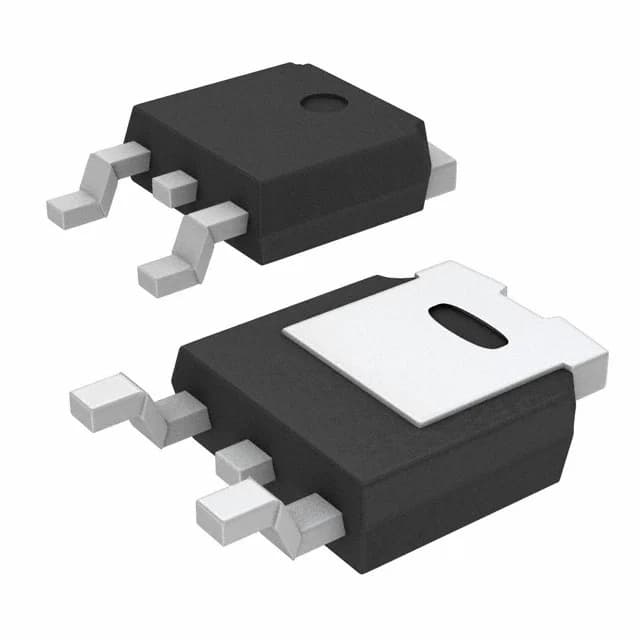

STMicroelectronics STD12NF06LT4 - Power Mosfet N Channel 60 V
The STMicroelectronics STD12NF06LT4 is a high-performance power MOSFET designed for use in a wide range of applications. This N-channel MOSFET has a maximum voltage rating of 60V and is capable of handling high currents, making it suitable for use in power supplies, motor control, and other high-power applications.
The STD12NF06LT4 is designed with advanced technology to ensure reliable and stable performance. It also has a low threshold voltage, which means it can be easily controlled with a low voltage signal.
Specifications | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V |
| Rds On (Max) @ Id, Vgs | 100mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 5 V |
| Vgs (Max) | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 350 pF @ 25 V |
| Power Dissipation (Max) | 42.8W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | Automotive |
| Mounting Type | Surface Mount |
