Manufacturer
CommScope
MPN
T-2-DM
MOQ
21
Available
26
Condition
New

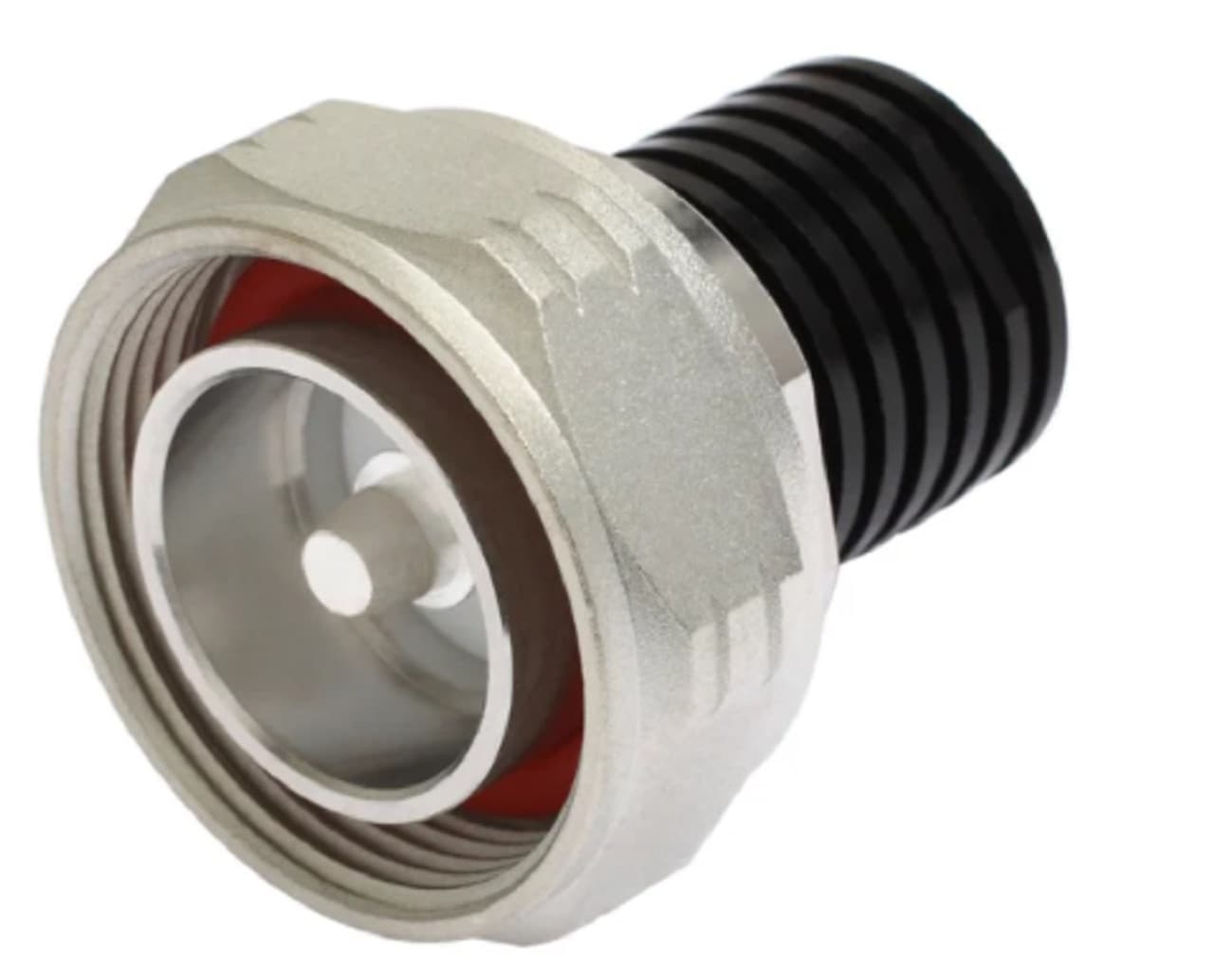

Andrews Termination Load; 0-3000 MHZ
It has a frequency range of 0-3000 MHz, making it suitable for a wide range of applications. The model name for this termination load is T-2-DM, indicating its dual-male connector design.
Specifications | |
| Product Type | Termination Load |
| pplication | Indoor/Outdoor |
| Color | Black |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Male |
| Outer Contact Plating | Trimetal |
Dimensions | |
| Length | 36 mm / 1.417 in |
| Diameter, maximum | 35 mm / 1.378 in |
Electrical Specifications | |
| Return Loss at Frequency Band | 27.0 dB up to 2700 MHz |
| Return Loss, minimum | 23 dB |
| Average Power at Temperature | 1.7 W @ 60 °C |
| Average Power, maximum | 2 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 0 – 3000 MHz |
| VSWR | 1.15 |
Environmental Specifications | |
| Operating Temperature | -35 °C to +50 °C (-31 °F to +122 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Please refer to the following attachments for additional details on the product.
