Manufacturer
QAM
MPN

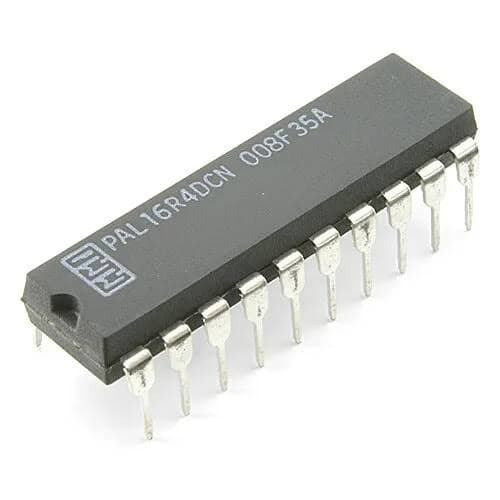

QAM PAL16R4DCN
MOQ
208
Available
397
Condition
New
PLD
| Programmable Logic Type | OT PLD |
| Clock Frequency-Max | 58.8 MHz |
| JESD-30 Code | R-PDIP-T20 |
| Number of Dedicated Inputs | 8.0 |
| Number of I/O Lines | 4.0 |
| Number of Terminals | 20 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 75.0 Cel |
| Organization | 8 DEDICATED INPUTS, 4 I/O |
| Output Function | MIXED |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Propagation Delay | 10.0 ns |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Nom | 5.0 V |
| Supply Voltage-Min | 4.75 V |
| Supply Voltage-Max | 5.25 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | COMMERCIAL EXTENDED |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 26.035 mm |
| Width | 7.62 mm |
| Additional Feature | REGISTER PRELOAD; POWER-UP RESET |
