Manufacturer
Tripp Lite
MPN
ISOBAR4 ULTRA
MOQ
2
Available
1
Condition
New

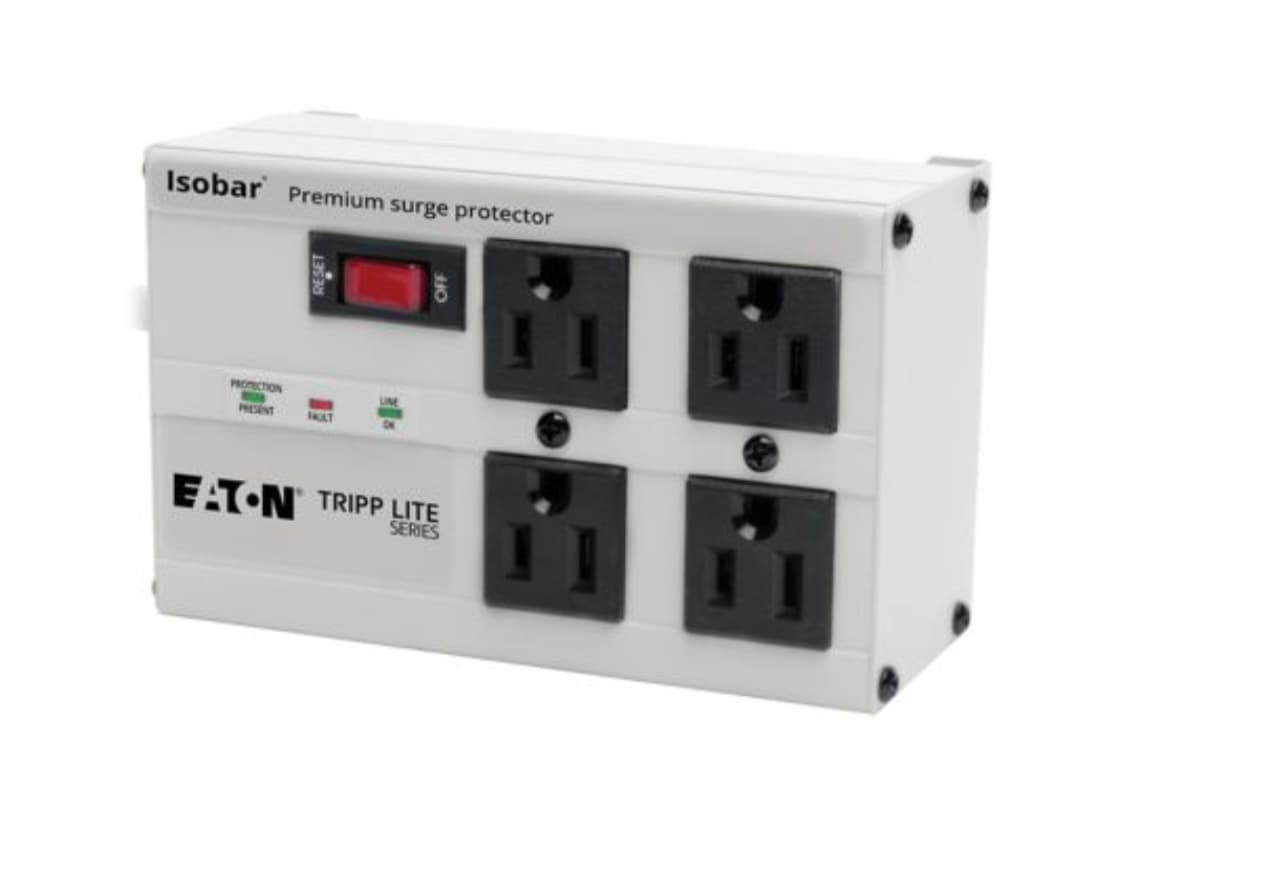

2-units min. Tripp Lite ISOBAR4 ULTRA - ISOBAR4 Ultra surge suppressor 4 outlet 6' cord led diagonal - ISOBAR4 ULTRA
Specifications | |
| Surge Style | ST - STRIP |
| Switches | Combination AC circuit breaker & 2 position red illuminated on/off switch |
| Voltage Compatibility (VAC) | 120 |
| Circuit breaker | 12 |
| Frequency rating | 50/60 Hz |
| Diagnostic LED Details | PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green) |
| EMI / RFI Filtering | 40-80 dB |
| Immunity | Conforms to IEE 587 / ANSI C62.41 |
| Protection Modes | Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression |
| Receptacle Color | BLACK |
| Recommended Electrical Service | 120V (110-125V) |
| Slot or Hole Mount Measurement (Center to Center) | Distance between horizontal tabs = 131.90 mm; Distance between vertical tabs = 58.17 mm |
| Transformer Accommodation | Transformer Accommodation |
| UL1449 Let Through Rating | 330V |
| Input Cord Details | SJT |
| Input Cord Gauge (AWG) | 14 |
| Cord Length | 6 Foot |
| Power Cord Color | Light Gray |
| Housing Color | Gray Light gray |
| Outlet Spacing | Distance between horizontal outlets = 39.45mm; Distance between vertical outlets = 39.30mm |
| Outlets Measurement (Center to Center) | Distance between horizontal outlets = 39.45mm; Distance between vertical outlets = 39.30mm |
| Material | Metal |
| Input Plug Type | NEMA 5-15P |
| Output Receptacles | 5-15R |
Please refer to the following attachments for additional details on the product.
No specifications available.
