Manufacturer
TE Connectivity
MPN
TRAB9023
MOQ
2
Available
0
Condition
New

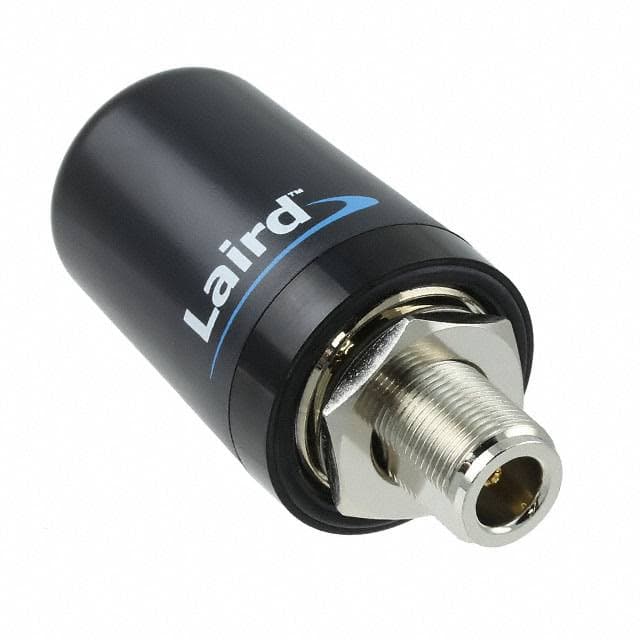

Blk 902-928mhz 3db Transit
The TE Connectivity TRAB9023 is a high-performance transit antenna designed for use in the 902-928mhz frequency range. This black antenna features a 3db gain, making it ideal for applications that require a strong and reliable signal. The TRAB9023 is specifically designed for transit applications, making it perfect for use in vehicles such as buses, trains, and other forms of public transportation.
| RF Family/Standard | Cellular | |
| Frequency Group | UHF (300MHz ~ 1GHz) | |
| Frequency (Center/Band) | 915MHz | |
| Frequency Range | 902MHz ~ 928MHz | |
| Antenna Type | Dome | |
| Number of Bands | 1 | |
| VSWR | 2 | |
| Return Loss | - | |
| Gain | 3dBi | |
| Power - Max | 150 W | |
| Features | - | |
| Termination | N Type Female | |
| Ingress Protection | - | |
| Mounting Type | Panel Mount | |
| Height (Max) | 2.700" (68.58mm) | |
| Applications | GSM |
Please refer to the following attachments for additional details on the product.
No specifications available.
