Manufacturer
TE Connectivity
MPN
TRA806-17103
MOQ
2
Available
5
Condition
New

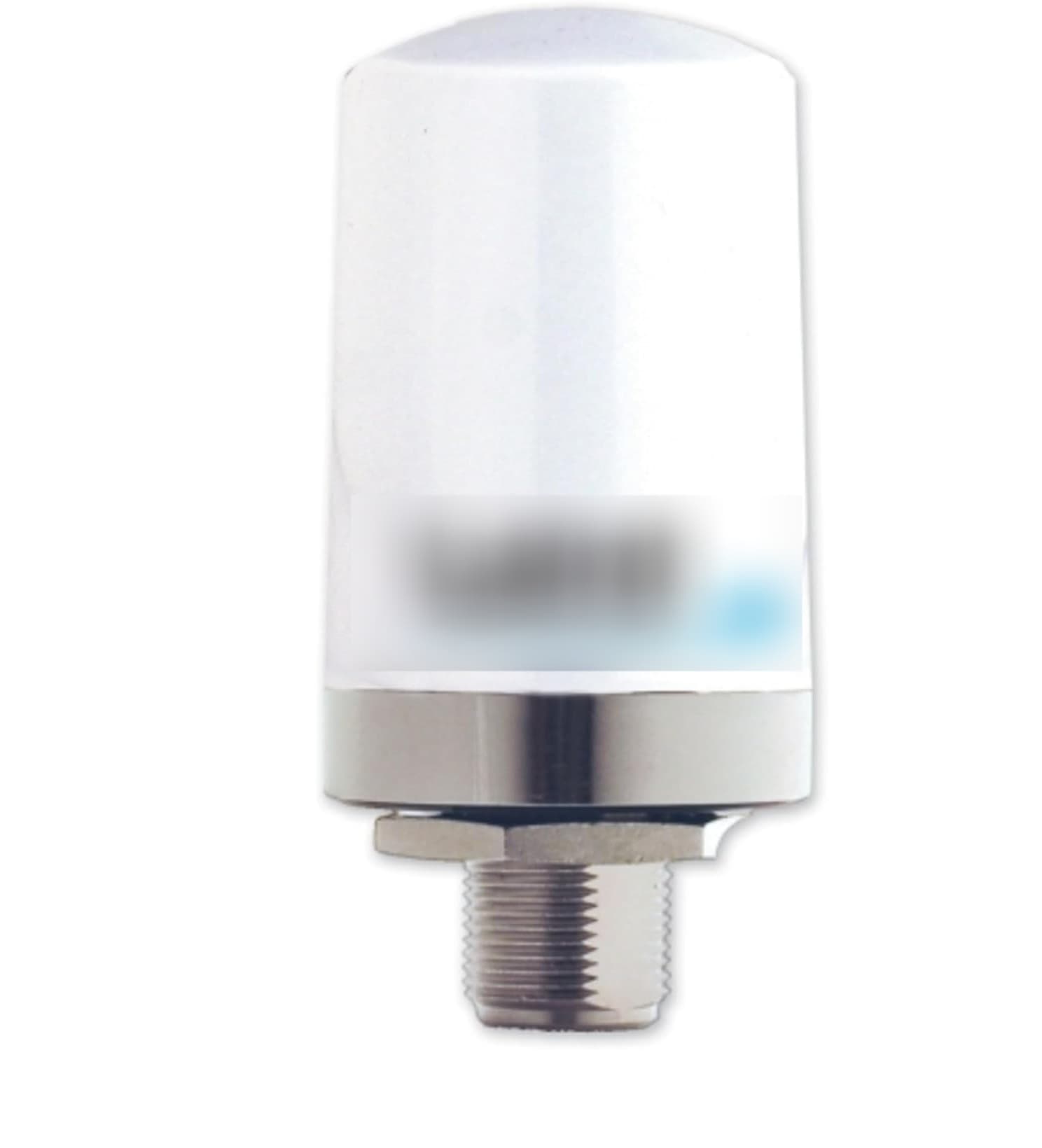

TE Connectivity TRA806-17103 - 806-960 Mhz 3db Dcs/gsm/umts Ant
The TE Connectivity TRA806-17103 is a high-performance antenna designed for use in DCS/GSM/UMTS applications. It operates in the frequency range of 806-960 MHz and has a gain of 3dB, making it suitable for a wide range of wireless communication systems. It is also designed to provide a stable and consistent signal, ensuring reliable connectivity for your devices.
| RF Family/Standard | Cellular, General ISM |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz |
| Frequency Range | 806MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz |
| Antenna Type | Dome |
| Number of Bands | 7 |
| VSWR | 2, 2.5 |
| Gain | 5.9dBi, 5.8dBi, 5.1dBi, 4.2dBi, 4.2dBi, 4.4dBi, 3dBi |
| Power - Max | 100 W |
| Termination | NMO |
| Mounting Type | Base Mount |
| Height (Max) | 2.300" (58.42mm) |
Please refer to the following attachments for additional details on the product.
Warranty
30-days warranty
