Manufacturer
Juniper Networks
MPN
QFX-QSFP-40G-SR4
MOQ
2
Available
192
Condition
New

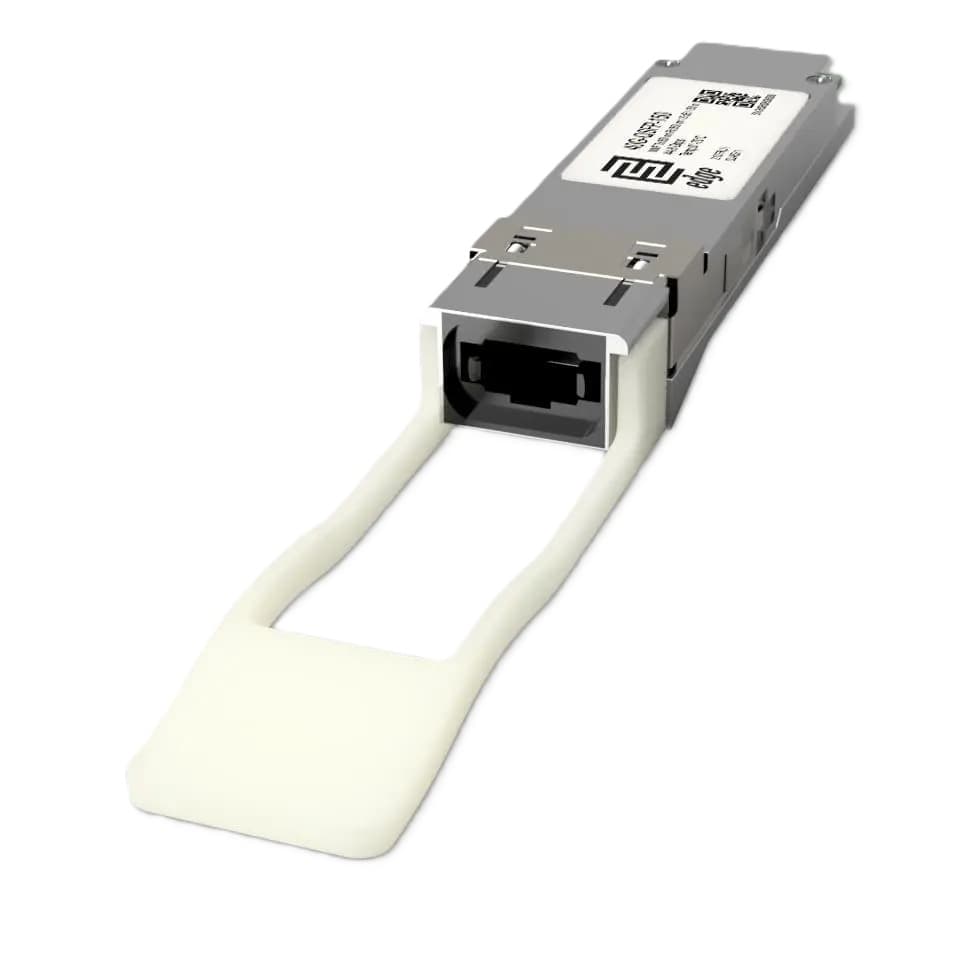

Juniper Networks QFX-QSFP-40G-SR4 - Pdt, Module, Qsfp+ 40gbase-sr4 40 Gigabit Optics, 850nm, Mm, 150m
The Juniper Networks QFX-QSFP-40G-SR4 is a high-performance module designed for use in Juniper Networks switches. This module is a QSFP+ 40GBase-SR4 optic, which means it can transmit data at speeds of up to 40 gigabits per second. It operates at a wavelength of 850nm and is compatible with multimode fiber, allowing for a maximum transmission distance of 150 meters.
This module is ideal for high-speed data center and enterprise network applications, providing reliable and efficient connectivity for demanding workloads. It also features low power consumption and advanced error correction technology, ensuring stable and reliable data transmission.
Key Technical Data | |
|---|---|
| Media Type: | 4 Lanes of MMF |
| TX Wavelength: | 850 nm. |
| Transceiver Type: | QSFP |
| RX Wavelength: | 850 nm. |
| Minimum Optical Budget: | 1.9 dB |
| Maximum Distance: | 150m |
| Supported Data Rate: | 39.81 – 44.8 Gbps |
| Temperature Range: | Standard 0°-70°C |
| Connectors: | MTP/MPO |
| Tx Wavelength Bandwidth: | 20 nm (840-860 nm) |
| Rx Wavelength Bandwidth: | 20 nm (840-860 nm) |
| Minimum Transmitting Power: | Each Lane -7.6 dB |
| Maximum Transmitting Power: | Each Lane -1.0 dB |
| Receiver Sensitivity: | Each Lane -9.5 dBm |
| Receiver Overload: | Each Lane 2.4 dBm |
| Transmitter Type: | VSCEL Laser |
| Receiver Type: | PIN photodiode |
| Chipset: | MAXIM, MINDSPEED, SEMTECH, UX |
| Power: | +3.3V single power supply |
Please refer to the following attachments for additional details on the product.
