Manufacturer
JMA Wireless
MPN
UXP-DM-12
MOQ
2
Available
141
Condition
New

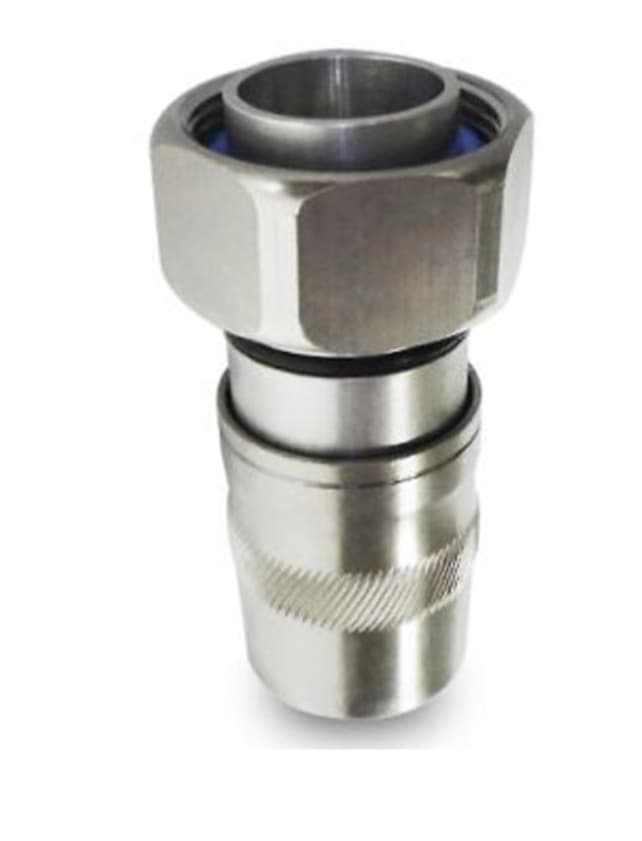

2-units min. JMA Wireless Connector, Din(m) For 1/2 Annular Cable - UXP-DM-12
The 2-units min. JMA Wireless Connector, Din(m) For 1/2 Annular Cable - UXP-DM-12 is a high-quality and reliable connector designed for use with 1/2 annular cables. This connector features a Din(m) interface, which is a standard connector type used in many wireless applications. The UXP-DM-12 is specifically designed for use with 1/2 annular cables, which are commonly used in wireless communication systems.
General Specifications | |
|---|---|
| Cable Supported | Andrew LDF4-50A RFS LCF12-50 DrakaRFA12-50 Leoni 1/2"R Eupen EC4-50 Hansen 1/2" Rosenberger SL 012R FRNC LS HFC-12D HFAC-12D |
| WPS Weather Protection | WPS-4A |
| Length | 2.120" |
| Outer Diameter | 1.040" |
| Hex width | 1.25" |
| Weight | 0.311 lbs. |
Electrical Specifications | |
| Impedance | 50Ω Nominal |
| Average Return Loss (VSWR) DTF | > -40dB (1.02) 0-1 GHz, > -36dB (1.03) 1-2 GHz > -32dB (1.05) 2-4 GHz, -28dB (1.08) 4-6 GHz |
| Voltage withstand | >3.0 kV |
| Sheilding effectiveness | <-120dB |
| Insulation Resistance | 10GΩ initial, 100MΩ after conditioning |
Environmental Specifications | |
| Operating Temperature | -55°C to +85°C |
| Storage Temperature | -55°C to +85°C |
| Interface Moisture | No leakage, mated or unmated > 1.0 Bar |
| Moisture Ingress | No leakage |
| Corrosion Resistance | 1000 Hours |
| H.A.L.T. | 40 hours |
Please refer to the following attachments for additional details on the product.
