Manufacturer
Ciena
MPN
XCVR-010V31
MOQ
2
Available
140
Condition
New

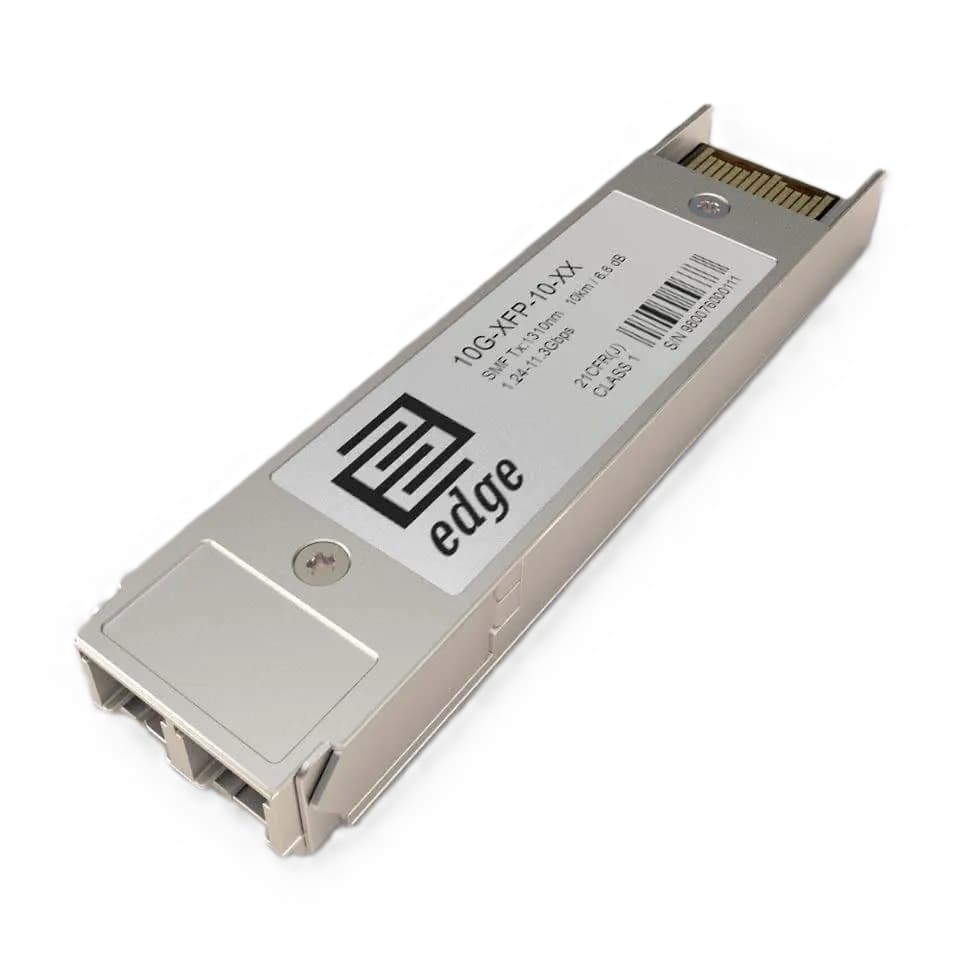

Ciena XCVR-010V31 - Pdt Transceiver 10gig Sm Xfp Lc Connector
The Ciena XCVR-010V31 is a high-performance transceiver designed for 10-gigabit Ethernet applications. It is compatible with single-mode fiber optic cables and features an XFP form factor with LC connectors. The XCVR-010V31 is a plug-and-play device that can be easily installed in a variety of networking equipment, such as switches, routers, and servers.
It supports a transmission distance of up to 10 kilometers, making it ideal for long-distance data transmission. This transceiver operates at a wavelength of 1310nm and supports a data rate of 10Gbps. It also features digital diagnostics monitoring (DDM) capabilities, allowing for real-time monitoring of the transceiver's performance and health. It also has a low power consumption, making it an energy-efficient option for network infrastructure.
Key Technical Data | |
|---|---|
| Media Type: | Single-Mode Fiber (SMF) |
| TX Wavelength: | 1310 nm. |
| RX Wavelength: | 1310 nm. |
| Minimum Optical Budget: | 6.8 dB |
| Maximum Distance: | 10km |
| Supported Data Rate: | 1.24-11.32Gbps |
| Supported Applications: | 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), 10G Fiber Channel (10.52 Gbps), 8G Fiber Channel (8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel (2.125 Gbps), 1G Fiber Channel (1.0625 Gbps), STM-16 (2.488 Gbps), STM-64 (9.95Gbps), ODU0 (1.244Gbps) |
| Temperature Range: | Standard 0°-70°C |
| Connectors: | Double LC |
| Tx Wavelength Bandwidth: | 100 nm (1260-1360 nm) |
| Rx Wavelength Bandwidth: | 100 nm (1260-1360 nm) |
| Minimum Transmitting Power: | -8.2 dB |
| Maximum Transmitting Power: | 1 dB |
| Receiver Sensitivity: | -15 dBm |
| Receiver Overload: | 0.5 dBm |
| Dispersion: | 70-100 ps/nm |
| Transmitter Type: | DFB Laser |
| Receiver Type: | PIN photodiode |
| Power: | +3.3V single power supply |
| Chipset: | MAXIM, MINDSPEED, SEMTECH |
| Transceiver Type: | XFP |
No specifications available.
