Manufacturer
Blonder Tongue Laboratories, Inc.
MPN
AM60-806
MOQ
2
Available
55
Condition
New

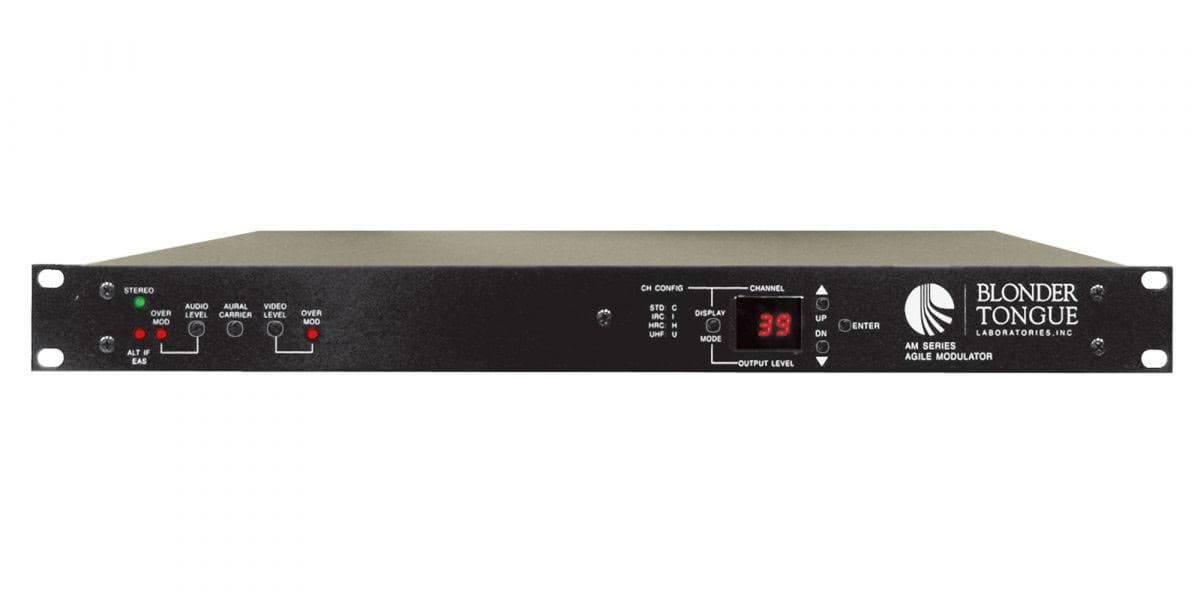

Modulator, 806mhz, Agile With Eas
The Blonder Tongue AM60806 Modulator is a high-quality, agile modulator designed for use in cable television systems. It operates on the 806mhz frequency and is equipped with an EAS (Emergency Alert System) feature, ensuring that important emergency messages can be broadcasted to viewers. The model name for this modulator is AM60-806, indicating its agile capabilities and frequency range.
Specifications | |
Input | |
| Connector | "F" Female |
| Impedance | 75Ω |
| Return Loss | 18 dB |
| Video Input Level | 0.7 volt Peak-toPeak (87.5% ±2.5% depth of medulation) |
| Video-to-RMS Hum Ratio | 65 dB Peak-to-Peak |
| Signal-to-Noise Ratio | 58 dB (Weighted; at 4 MHz bandwidth) |
| Differential Gain | 2.0% |
| Differential Phase | 1.0 degree |
| Overal-modulation Indicator | 87 to 92% |
| Mono Audio Connector | Terminal Strip |
| Input Impedance | 600Ω, balanced |
| Input Level | 0.5 to 4.0 vold Peak-to-Peak |
| Frequency Range | 50 Hz to 15 kHz |
| Frequency Response | ±0.5 dB |
| Total Harmonic Distortion | 1% @ 25 kHz deviation |
| Signal-to-Noise Ratio | 59 dB |
Output | |
| Connector | "F" Female |
| Impedance | 75Ω |
| Return Loss | 12 dB |
| Frequency Range | 54 to 860 MHz (NTSC CATV Ch. 2 - 135) |
| Power Level | +60 dBmV |
| Power Level Range | +50 to +60 dBmV (in 0.2 dB increments) |
| Video Flatness | fv-0.5 to fv+4.2 MHz (1.0 dB Peak-to-Valley) |
| Carrier-to-Noise (In Channel) | 63 dB |
| Broadband Noise (4 MHz bandwidth) | -77 dBc (@ +45/60 dBmV output level) |
| Spurious Outputs | -63 dBc |
| Aural/Visual Carrier Ratio | -15 ±5 dB |
| Tolerance | ±150 Hz; 32 to 122 °F |
General | |
| Dimensions (W x D x H) | 19.0 x 14.25 x 1.75 in |
| Power | 117 VAC ±10%; 60 Hz (Fuse: 0.40 Amp) |
| Also available in | 220 VAC; 50Hz |
| Power Dissipation | 28 W (max) |
| Weight | 7 lbs (3.18 kg) |
| Operating Temperature | 32 to 122°F |
| Storage Temperature | -13 to 158°F |
| Humidity | 0 to 95% RH @ 35 °C max, non-condensing |
Please refer to the following attachments for additional details on the product.
