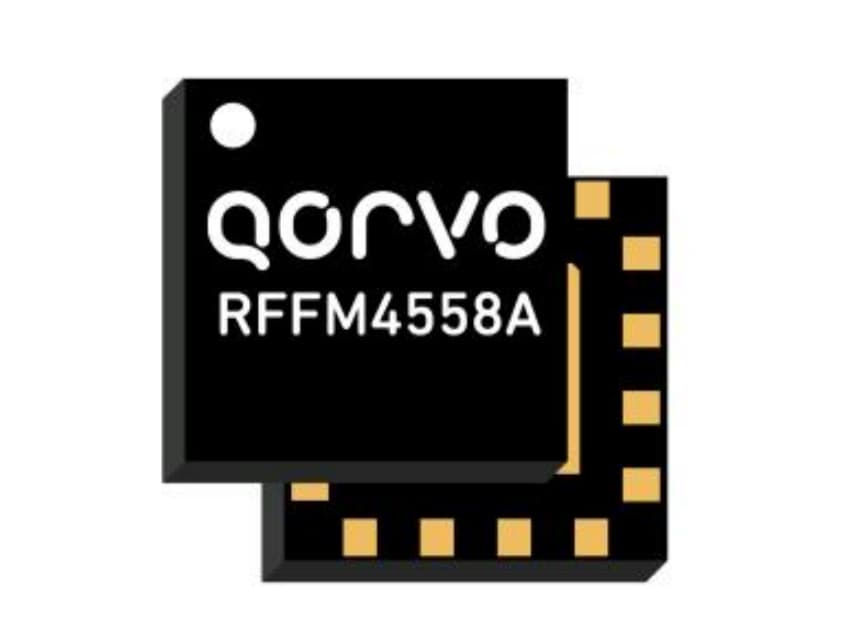

164-units min. Qorvo, Inc. Wi-fi Front End Module - RFFM4558A
Slide 1 of 1
Manufacturer
Qorvo, Inc.
MPN
RFFM4558A
MOQ
164
Available
0
Condition
New
Qorvo, Inc. RFFM4558A - Wi-fi Front End Module
It is a compact and cost-effective solution that integrates a power amplifier, low noise amplifier, and a single-pole double-throw switch into a single package. This front end module is ideal for use in a wide range of Wi-Fi devices, including routers, access points, and other wireless devices.
Key Features
4900 – 5925 MHz
POUT = +20.5dBm MCS9 VHT80 -35dB dynamic EVM
POUT = +21dBm MCS7 HT20/40 -30dB dynamic EVM
POUT = +24dBm MCS0 HT20 spectral mask compliance
160MHz bandwidth and MCS11 capable
Optimized for +5 V operation
<0.9 W power consumption at POUT = +20dBm
32 dB Tx gain
2.5 dB noise figure
14 dB Rx gain & 5 dB bypass loss
15 dB 2.4 GHz rejection on Rx path
Specifications | |
| Frequency Min(GHz) | 4.900 |
| Frequency Max(GHz) | 5.925 |
| Functionality | PA, Switch, LNA with bypass |
| Wi-Fi Standards | Wi-Fi 5 |
| Vcc(V) | 5 |
| 11ac Pout(dBm) | 20.5 |
| 11ac EVM(dB) | -35 |
| 11ac Current(mA) | 179 |
| 11n Pout(dBm) | 21 |
| 11n EVM(dB) | -30 |
| Tx Gain(dB) | 32 |
| OP1dB(dBm) | 30 |
| Rx Current(mA) | 14 |
Please refer to the following attachments for additional details on the product.
