OPT IAC5P

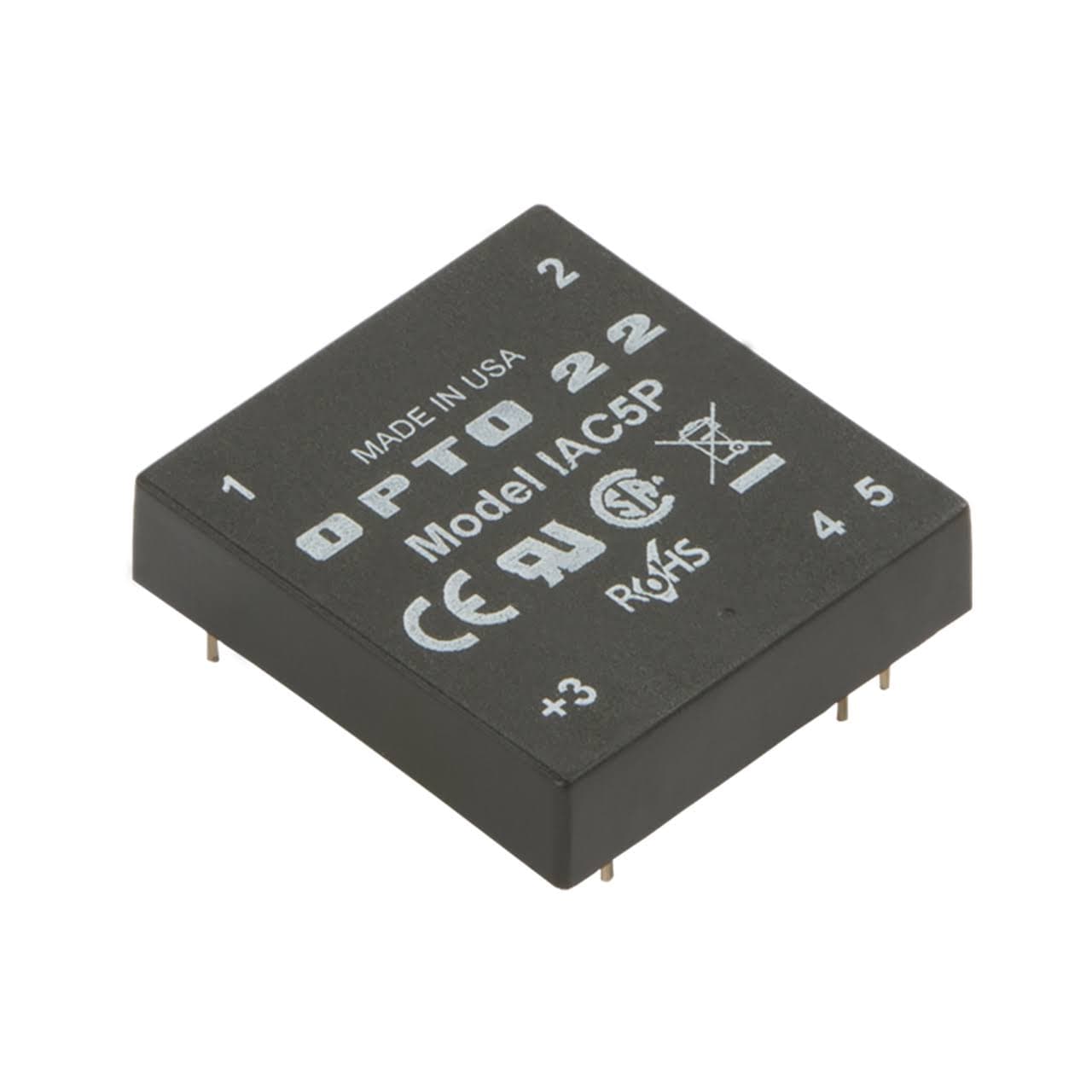

OPTO 22 - IAC5P _ Flat Pak Input Module, 90-140 VAC/VDC
Quick Specs:
Because of their low profile, Flat Pak modules are ideal for user-designed printed circuit boards where the standard single-channel or Quad Pak modules do not provide an exact fit.
The IAC5P handles 90-140 VAC or VDC.
Flat Pak input modules are used for sensing ON/OFF voltage levels. All Flat Pak input modules are designed with filtering on the input and a hysteresis amplifier for high noise rejection and transient free "clean" switching. Each module provides up to 4000 V of optical isolation between field inputs and the logic side of the circuit.
Typical uses and applications include sensing the presence or absence of voltage from sources such as:
| IAC5P | IDC5P | |
| Input Voltage Range | 90 - 140 VAC or VDC | 10 - 32 VDC or 12 - 32 VAC |
| Input Current at Maximum Line | 11 mA | 25 mA |
| Turn-on Time | 20 ms | 5 ms |
| Turn-off Time | 20 ms | 5 ms |
| Input Allowed for No Output | 3 mA, 45 V | 1 mA, 3 V |
| Logic Supply Voltage, Nominal | 5 VDC | 5 VDC |
| Logic Supply Voltage Range | 4.5 - 6.0 VDC | 4.5 - 6.0 VDC |
| Logic Supply Current at Nominal Logic Voltage | 12 mA | 12 mA |
| Input Resistance (R1 in Schematic Diagram) | 14,000 Ohms | 1500 Ohms |
| Control Resistance (Rc in Schematic Diagram | 220 Ohms | 220 Ohms |
| Optical Isolation, Input-to-output | 4000 Vrms | 4000 Vrms |
| Output Voltage Drop | 0.4 V @ 50 mA | 0.4 V @ 50 mA |
| Output Current | 50 mA | 50 mA |
| Output Leakage with No Input | 100 µA maximum @ 30 VDC | 100 µA maximum @ 30 VDC |
| Operating Temperature | - 30 to 70 °C | - 30 to 70 °C |
