Manufacturer
Intel
MPN
G7
MOQ
126
Available
0
Condition
New

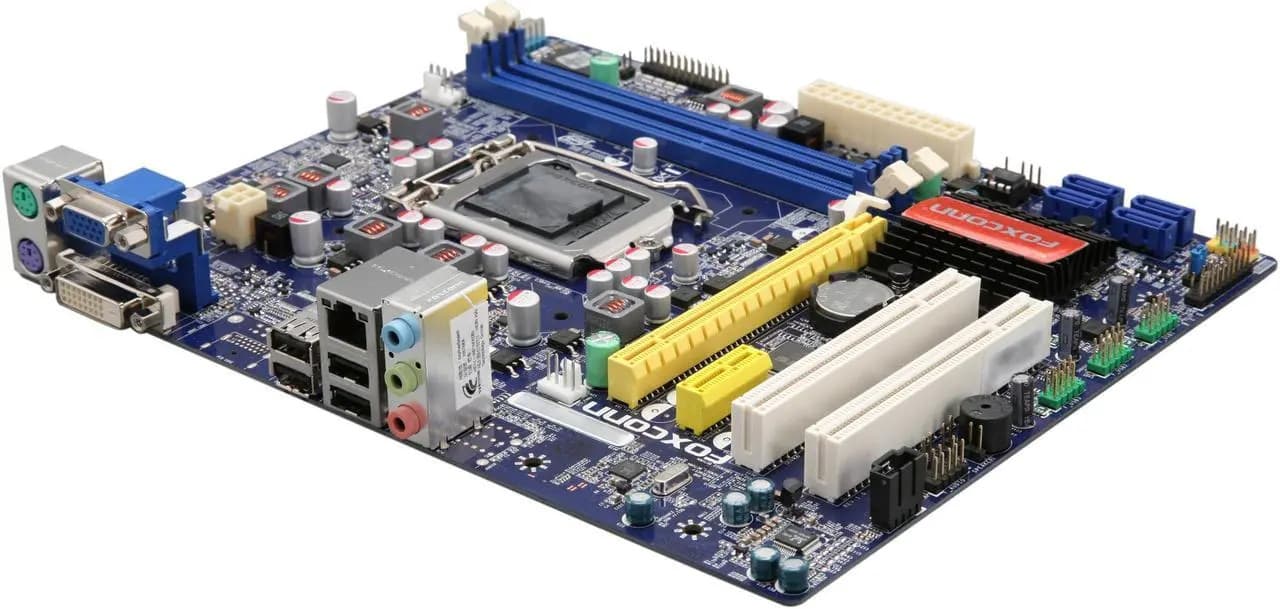

Intel G7 - H61mx Motherboard Ddr3 Lga1155
The Intel G7 - H61mx Motherboard is a high-performance motherboard designed for use with Intel processors. It features the LGA1155 socket, making it compatible with a wide range of Intel CPUs. With its compact form factor, it is perfect for building a powerful yet compact computer system.
It is equipped with advanced features such as USB 3.0 ports, SATA 6Gb/s ports, and PCIe 3.0 slots, allowing you to connect a variety of peripherals and expansion cards. With its Intel G7 chipset, this motherboard offers excellent stability and reliability, ensuring smooth operation even under heavy workloads.
Specifications | |
|---|---|
| CPU Socket Type | LGA 1155 |
| CPU Type | Core i7 / i5 / i3 (LGA1155) |
| Chipset | Intel H61 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Number of Memory Slots | 2x240pin |
| Memory Standard | DDR3 1600(IVB)/1333/1066 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| Audio Channels | 6 Channels |
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
| PS/2 | 2 |
| Video Ports | D-Sub + DVI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 6 x USB 2.0 |
| Other Connectors | 1 x 4-pin ATX 12V power connector 1 x 4-pin CPU FAN connectors 1 x 4-pin System FAN connector 1 x Front pannel header 1 x Front Audio header 1 x Parallel header 1 x COM header 1 x TPM header 1 x Intruder Alarm headers 1 x S/PDIF out header 1 x CLR_CMOS header 1 x CD-IN header 1 x IrDA header 1 x Speaker header |
| Dimensions (W x L) | 9.6" x 8" |
| Power Pin | 24 Pin |
| Features | Intel H61 Chipset Ivybridge/Sandybridge processors Dual channel DDR3 1600(IVB)/1333/1066 x 2 DIMMs, Max.16 GB 1* PCIe 3.0(IVB)/2.0 x16, 1* PCIe x1, 2* PCI 4* SATA II 5.1 channel HDA, Gigabit Lan uATX form factor |
