Manufacturer
Ciena
MPN
XCVR-A00G85
MOQ
11
Available
207
Condition
New

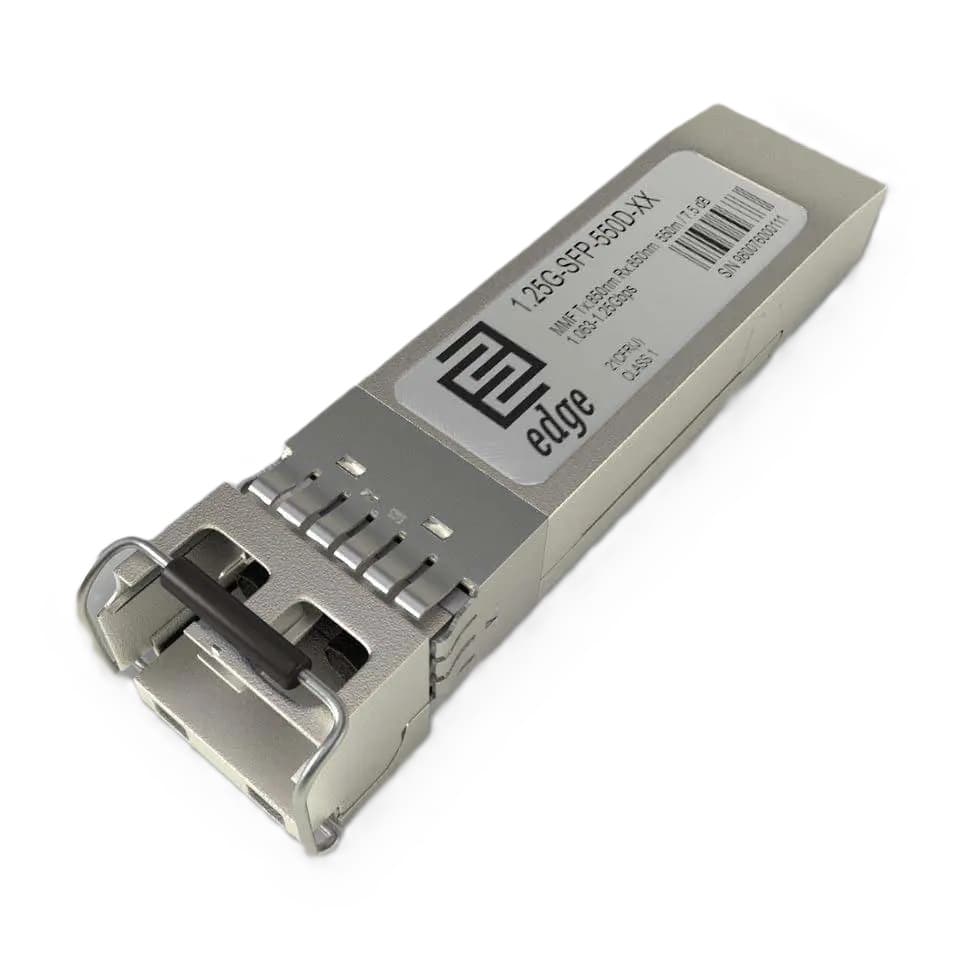

Ciena XCVR-A00G85 - Interface, Tranceiver, 1 Gig, Mm Sfp Optic, Lc
The Ciena XCVR-A00G85 is a high-quality interface and transceiver designed for use in networking applications. This 1 Gigabit optic is specifically designed for use with multimode fiber and features an LC connector for easy installation. With its compact design and advanced features, the XCVR-A00G85 is the perfect solution for expanding your network and ensuring fast and reliable data transmission.
Key Technical Data | |
|---|---|
| Media Type: | Multi-Mode Fiber (MMF) |
| TX Wavelength: | 850 nm. |
| RX Wavelength: | 850 nm. |
| Minimum Optical Budget: | 7.5 dB |
| Maximum Distance: | 550m |
| Supported Data Rate: | 1.063-1.25Gbps |
| Supported Applications: | Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps) |
| Temperature Range: | Standard 0°-70°C |
| Connectors: | Double LC |
| Tx Wavelength Bandwidth: | 20 nm (840-860 nm) |
| Rx Wavelength Bandwidth: | 20 nm (840-860 nm) |
| Minimum Transmitting Power: | -9.5 dB |
| Maximum Transmitting Power: | -3 dB |
| Receiver Sensitivity: | -17 dBm |
| Receiver Overload: | -3 dBm |
| Dispersion: | 110 ps/nm |
| Transmitter Type: | VSCEL Laser |
| Receiver Type: | PIN photodiode |
| Power: | +3.3V single power supply |
| Chipset: | MAXIM, MINDSPEED, SEMTECH |
| Transceiver Type: | SFP |
Please refer to the following attachments for additional details on the product.
No specifications available.
