Manufacturer
Micro Commercial Components
MPN
SI3134KEA-TP
MOQ
10,000
Available
0
Condition
New

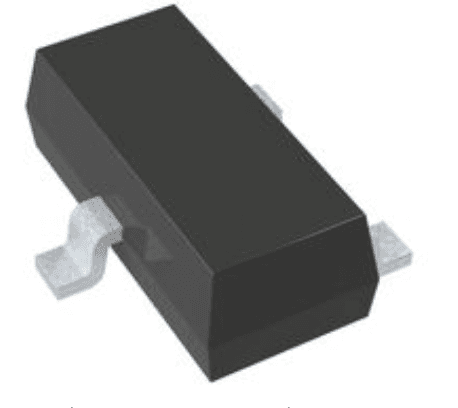

Micro Commercial Components SI3134KEA-TP - N-channel Mosfet
The Micro Commercial Components SI3134KEA-TP is a high-quality N-channel Mosfet that is designed for use in a variety of electronic applications. It has a low on-resistance and high current handling capability, making it suitable for use in power management and switching applications.
It also has a low gate charge and fast switching speed. It also has a low thermal resistance, ensuring that it stays cool even under heavy loads.
Specifications | |
| FET Type | N-Channel |
| Technology | MOSFET(MetalvOxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 750mA |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 300mOhm @ 500mA, 4.5V |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.8 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 33 pF @ 16 V |
| Power Dissipation (Max) | 180mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
