Manufacturer
JMA Wireless
MPN
UXP-NM-14S
MOQ
10
Available
10
Condition
New

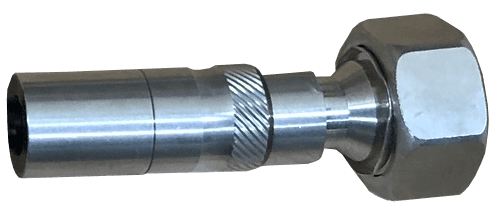

Connector, 1/4 Inch, N Male, 50 Ohm, Superflex
The JMA Wireless UXP-NM-14S is a high-quality connector designed for use in wireless communication systems. It features a 1/4 inch size and is compatible with N Male connectors. With a 50 Ohm impedance, this connector is suitable for a wide range of applications. It is specifically designed for use with Superflex cables, providing a secure and reliable connection.
| Frequency Band VSWR | |
| DC–1000 MHz | 1.02 |
| 1000–2000 MHz | 1.03 |
| 2000–4000 MHz | 1.05 |
| 4000–6000 MHz | 1.08 |
| Electrical | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | DC–6 GHz |
| 3rd order IMD dynamic (PIM) | -161 dBc, typical |
| DC Test Voltage | 1600 V |
| Center Contact Resistance | ≤ 1.0 milliohm |
| Outer Contact Continuity | 0.2 milliohm max. |
| Average Power | 400 W @ 900 MHz |
| Peak Power (max) | 6.4 kW |
| Insertion Loss (typical) | 0.05 dB |
| Shielding Effectiveness | < -120 dB |
| Mechanical | |
| Pull Force Combined | 0.67 kN |
| Cable Retention Torque | 2 N·m |
| Interface Durability | 500 cycles |
| Environmental | |
| Operating Temperature | -55°C to +85°C (-67°F to 185°F) |
| Storage Temperature | -55°C to +85°C (-67°F to 185°F) |
| Accelerated UV | 1000 hr |
| Immersion Test Method | Mated & unmated, IP68 |
| Water Jetting Test Method | Mated & unmated, IP66 |
| Mechanical Shock Test | Pass |
